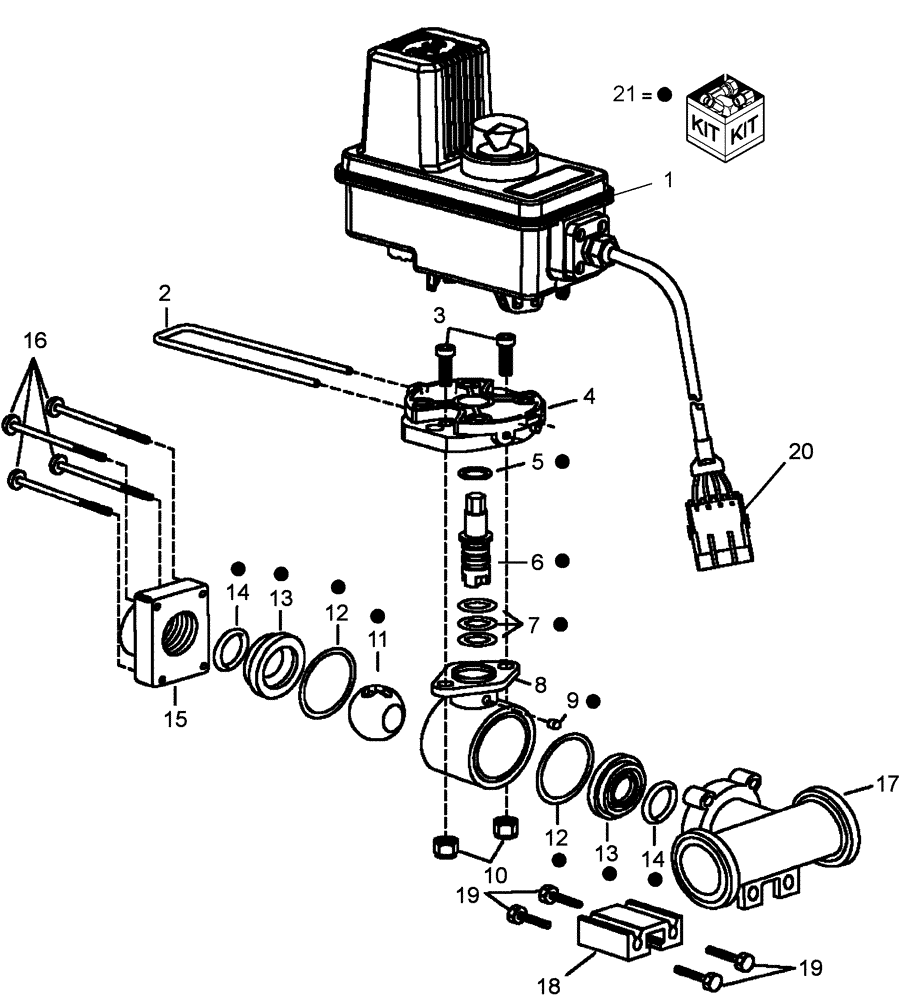

Запчасти Case IH SRX160 (L.20.A[31]) - ELECTRICAL - BALL VALVE L - Field Processing

0

87500051

VALVE

ball elec flng tee comp

1шт.

1

87500052

VALVE

body Spraying Systems 50515-22CP05

1шт.

2

87500054

CLIP

valve body Spraying Systems 50517-SSPV

1шт.

3

NSS

NOT SOLD SEPARAT

Socket Head Cap Screw

2шт.

4

87500053

PLATE

valve adapter

1шт.

5

NSS

NOT SOLD SEPARAT

Thrust Washer, Teflon

1шт.

6

87500140

VALVE STEM

stainless

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Viton

3шт.

8

NSS

NOT SOLD SEPARAT

Body, Nylon (Black)

1шт.

9

NSS

NOT SOLD SEPARAT

Dust Plug, Felt

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

11

87422332

BALL

poly valve

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Viton

2шт.

13

NSS

NOT SOLD SEPARAT

Seal, Teflon

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Viton

2шт.

15

NSS

NOT SOLD SEPARAT

End Cap, 1" NPT Thread, Nylon (Black)

1шт.

16

87505186

SELF-TAP SCREW

1/4" 12" x 2 3/4" ph pi ss

4шт.

17

87577838

TEE

fit poly 2" flange manifold

1шт.

17

23652

KIT

ball valve slide tee c/w 4 screws

1шт.

18

NSS

NOT SOLD SEPARAT

Mounting Bar, Aluminum

1шт.

19

NSS

NOT SOLD SEPARAT

Hex Screw, Stainless Steel

4шт.

20

NSS

NOT SOLD SEPARAT

4-Pin Packard Electric Weatherpack Shroud Connector

1шт.

21

87500141

REPAIR KIT

electric ball valve

1шт.
