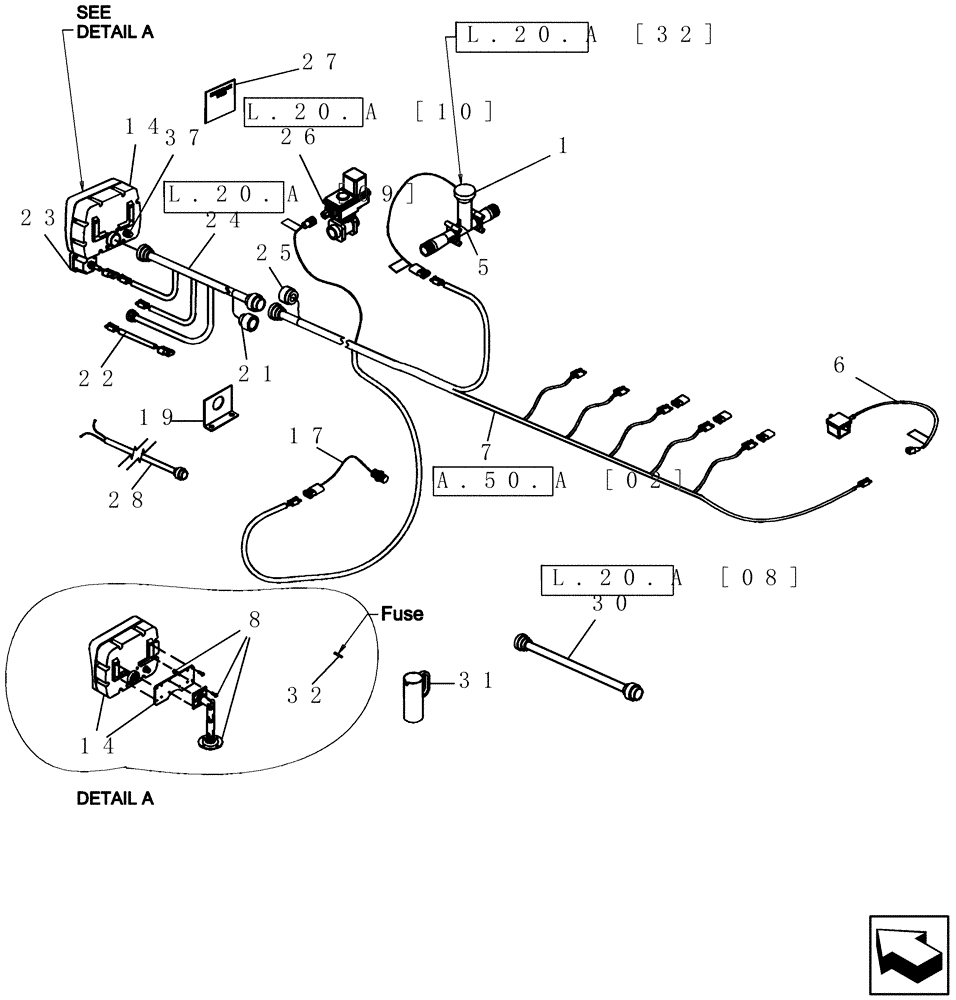

Запчасти Case IH SRX160 (L.20.A[29]) - ELECTRICAL - SENSOR, SP655 ELECTRICAL DIGITAL PRESSURE L - Field Processing

1

15577K

KIT

flow sensor replacement

1шт.

5

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

6

15263V3

SENSOR

pressure

1шт.

7

87505109

WIRE HARNESS

sprayer cart SP655

1шт.

Refer to A.50.A [02]

1шт.

8

425046A1

BRACKET

6" adjustable console mount

1шт.

14

15588

CONSOLE

sprayer - SP655

1шт.

17

7936

SENSOR

shaft 12 volt grey, 3 Pin Female WeatherPack

1шт.

Includes two 12093

1шт.

19

GH-139

BRACKET

plug support

1шт.

21

11958

DUST CAP

1шт.

22

87577709

HARNESS

radar - case (dj)

1шт.

Includes cable, instruction sheet and tie wraps

1шт.

22

8236

ELECTRIC CABLE

radar - john deere

1шт.

Includes cable, instruction sheet and tie wraps

1шт.

22

8237

ELECTRIC CABLE

radar - ford / versatile

1шт.

Includes cable, instruction sheet and tie wraps

1шт.

23

87577738

SWITCH

unit

1шт.

24

87506421

HARNESS

tractor 4 meter

1шт.

Refer to L.20.A [09]

1шт.

25

87577732

DUST CAP

14 cond rcp Deutsch

1шт.

26

87505108

VALVE

elec pressure reg 344b

1шт.

Includes 13319, 13313 and 12956

1шт.

Refer to L.20.A [10]

1шт.

27

87022556

HANDBOOK

Pocket Reference Card, SP655 Monitor

1шт.

28

12309

HARNESS

power extension

1шт.

30

87426007

CABLE EXTENSION

sprayer to tractor SP655

1шт.

Refer to L.20.A [08]

1шт.

31

8572

CONTAINER

calibration

1шт.

32

11084

FUSE CARTRIDGE

3ag 20 amp 32v medium blow

1шт.

37

87500982

FUSE HOLDER

panel 3ag 11/64" bl

1шт.
