Запчасти Case IH SRX160 (L.20.A[21]) - TANK - CART EYE WASH / INDUCTION AND LID DETAILS L - Field Processing

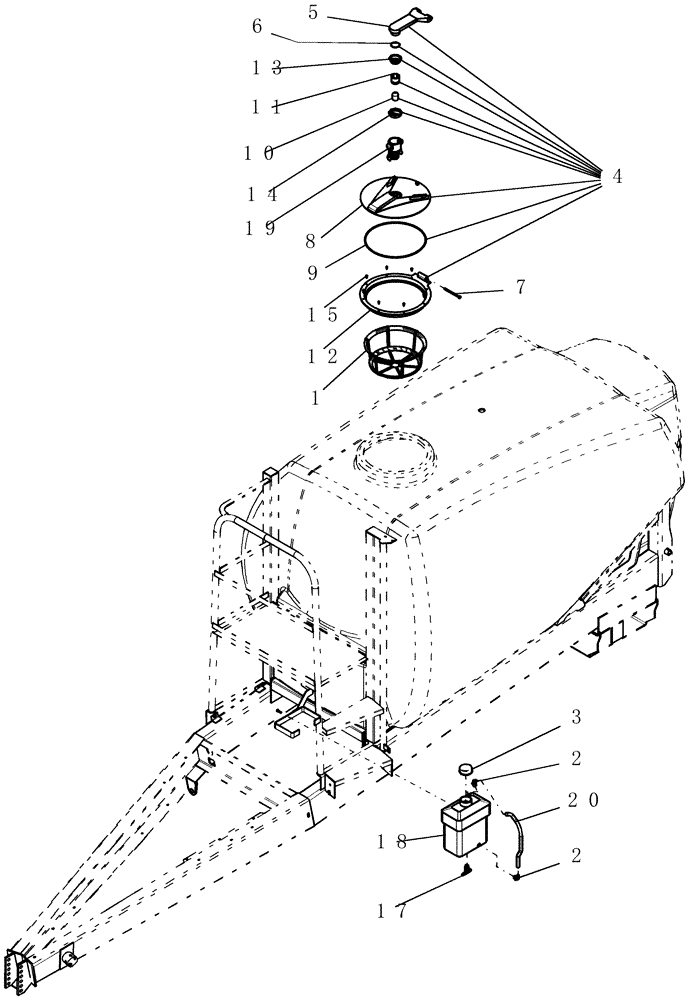

Схема запчастей Case IH SRX160 - (L.20.A[21]) - TANK - CART EYE WASH / INDUCTION AND LID DETAILS L - Field Processing
9
12
15
14
10
2
17
5
11
1
2
13
19
7
4
3
20
8
6
18

Артикул

Название

Примечание

Количество

1

87558640

STRAINER ELEMENT

tank 16" basket

1шт.

2

7743

ELBOW

fitting, nylon 90º 1/2" mpt 1/2" hb

2шт.

3

8188

CAP

hand/eye wash tank

1шт.

4

87577723

LID

tank hinged 16"

1шт.

Inclues 9165, 9162, 9167, 9164, 9159, 9158, 9166, 9163 and 9161

1шт.

5

87577727

SUPPORTING ARM

tank hinge lid

1шт.

6

9159

O-RING,2.359" ID x 2.637" OD x 0.139"

2 3/8" od

1шт.

7

9160

PIN

lid hinge

1шт.

8

9161

LID

tank

1шт.

9

9162

GASKET

tank lid

1шт.

10

9163

CHECK VALVE

poppet, tank lid

1шт.

11

9164

CHECK VALVE

sleeve, tank lid

1шт.

12

9165

RIM

tank lid

1шт.

13

9166

NUT

tank lid retaining

1шт.

14

9167

CAP

deflector, tank lid

1шт.

15

21700

SCREW

sms #10-24 x 3/4" fh, GA, sq-slt

8шт.

17

22560

VALVE

ball valve 1/2" fp x 1/2" mp c/w handle

1шт.

18

22599

TANK

hand/eye wash

1шт.

19

6089

COUPLING,2" Female Coupler-2" Hose Shank

cam lever female

1шт.

20

SQ-183

HOSE

Hand/Eye wash tank

1шт.

Выбрано товаров: 20
