Запчасти Case IH SRX160 (L.20.A[15]) - WHEELED BOOM - END WINDSCREEN L - Field Processing

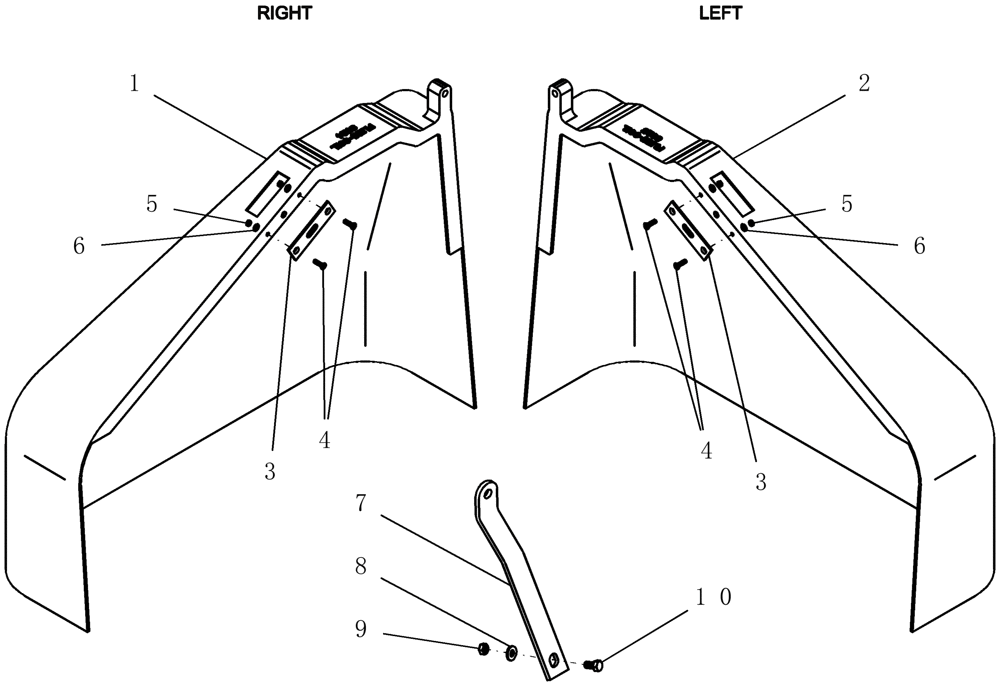

Схема запчастей Case IH SRX160 - (L.20.A[15]) - WHEELED BOOM - END WINDSCREEN L - Field Processing
8
6
5
3
3
4
6
9
7
5
10
4
2
1

Артикул

Название

Примечание

Количество

0

SQ-250K

KIT

end windscreen

1шт.

Includes SQ-434A, SQ-435A, two 2485, two 1549, two SQ-398, two 8919, two 8914, four 1561 and instruction sheet SQ-399.01

1шт.

1

SQ-434A

SCREEN

wind, assembly RH

1шт.

Includes SQ-438, 9109, 8923 and 9113

1шт.

2

SQ-435A

SCREEN

wind, assembly LH

1шт.

Includes SQ-438, 9109, 8923 and 9113

1шт.

3

SQ-438

SUPPORT

end windscreen front

2шт.

4

87577725

SCREW,Flat, #6 - 32 x 1/2"

mch #6-32x 1/2" fh sq

4шт.

5

8923

LOCK NUT

#6-32 stainless steel nylon

4шт.

6

87577726

WASHER

#6 SAE

4шт.

7

SQ-398

BRACKET

end windscreen support

1шт.

8

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

9

8914

LOCK NUT

1/4"-20 stainless steel nylon

1шт.

10

8919

SCREW,Pan Hd, 1/4" - 20 x 3/4", Sl Sq Drive, Stainless

1/4"-20 x 3/4" - stainless steel

1шт.

Выбрано товаров: 14
