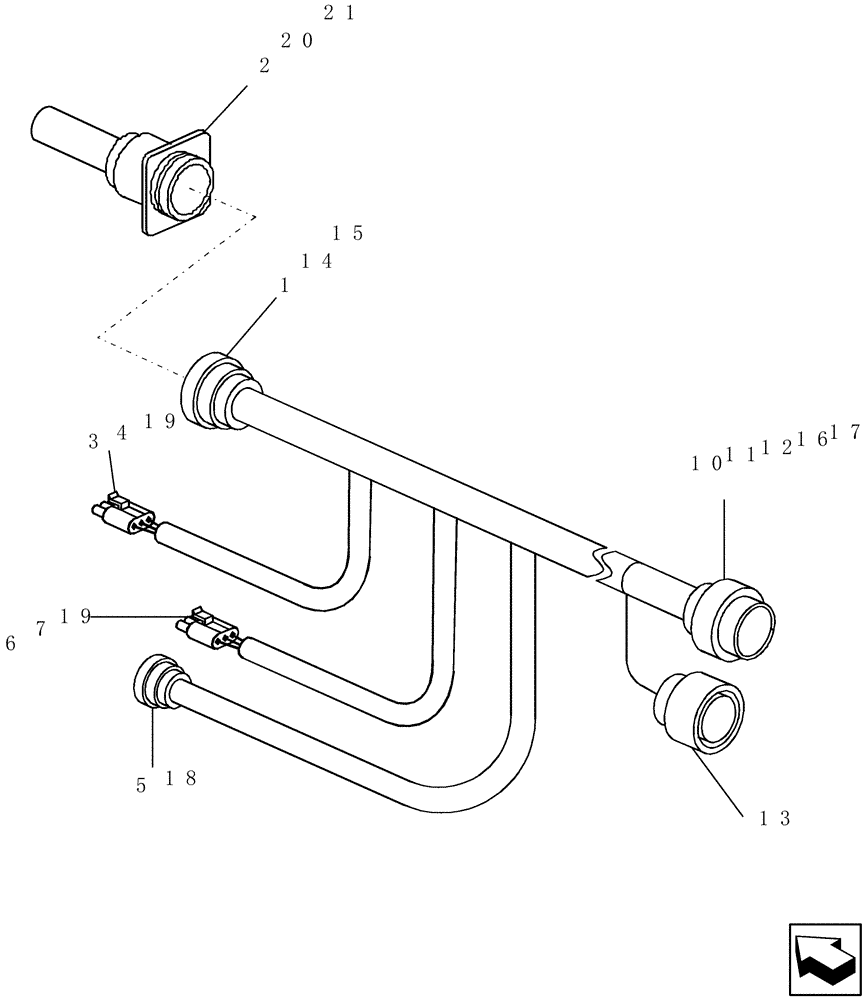

Запчасти Case IH SRX160 (L.20.A[09]) - ELECTRICAL - HARNESS TRACTOR 4 METER 87506421 L - Field Processing

0

87506421

HARNESS

tractor 4 meter

1шт.

1

221731A1

ELEC CONNECTOR,Female, 24 Pin

plastic 24c plug

1шт.

2

87506430

ELEC CONNECTOR

bypass, 655 sprayer monitor

1шт.

3

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

1шт.

4

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

3шт.

5

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

1шт.

7

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

3шт.

8

225127C1

PLUG

cavity, green rubber

3шт.

Not Shown

1шт.

9

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

Not Shown

1шт.

10

425264A1

ELEC CONNECTOR,14 Pin

metal 14c receptacle

1шт.

11

12181

LOCK WASHER

split 1 1/2" id

1шт.

12

12180

NUT

1 1/2" - 11/64" thick

1шт.

13

11958

DUST CAP

1шт.

14

425265A1

CONTACT HOUSING

socket 14-18awg

2шт.

15

225109C1

POWER SOCKET,Gold, 0.8 - 1.0mm

socket 16-18awg

15шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

12шт.

17

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

18

445518

TERMINAL CONNECTOR,Tin, 5.00 - 8.00mm

socket 8-10awg

2шт.

19

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

6шт.

20

NLS

NO LONGER SERVICED

Sash #8

1шт.

21

11746

CABLE TIE

CABLE STRAP adjustable nylon 1/8" wide x 5 5/8" long

1шт.
