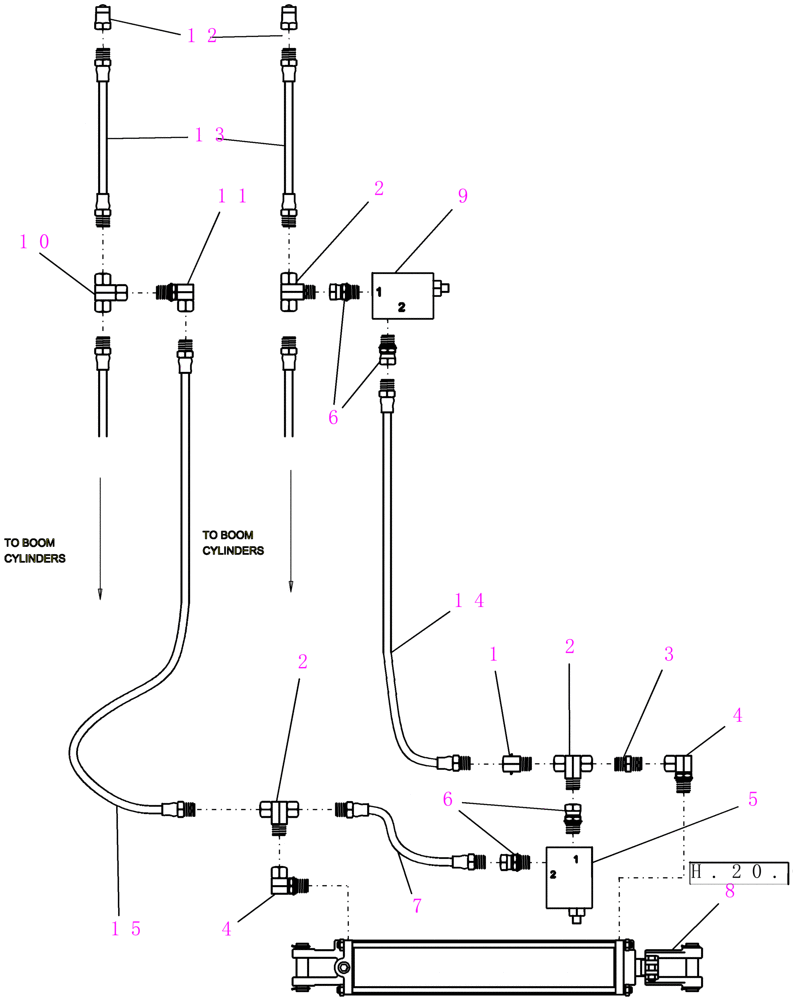

Запчасти Case IH SRX100 (H.20.G[11]) - WHEELED BOOM - HYDRAULIC UNFOLD H - Working Arm

1

9796

THROTTLE

fitting, hydraulic - check valve

1шт.

2

1242

TEE

fitting, hydraulic - swivel

3шт.

3

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.

4

3568

ELBOW

stl 90º 1/2"mb 1/2"fpx

1шт.

5

22122

VALVE PRESSURE RELIE

2750 psi

1шт.

6

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

4шт.

7

3399

HYDRAULIC HOSE

3/8" x 26" fl, 1/2"mpt x 1/2"mpt

1шт.

8

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

1шт.

Refer to H.20.G [06]

1шт.

Used on 4 and 6 section hydraulic unfold

1шт.

8

9652R

REMAN-HYD CYLINDER

SRX100, SRX160 Both FIELD SPRAYER, HYDRAULIC UNFOLD, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (6/06-11/08)

1шт.

8

9652C

CORE-HYD CYLINDER

Return Number

1шт.

9

22522

HYDRAULIC VALVE

sequence, 1750 psi

1шт.

10

87331082

FITTING

90º, 1/2" NPTF Male x 1/2" NPSM Fem Sw

1шт.

11

6809

TEE

fitting, hydraulic - swivel

1шт.

12

9412

QUICK MALE COUPLING

1/2"

2шт.

13

4074

HYDRAULIC HOSE

3/8" x 306" fl, 1/2" mpt x 1/2" mpt

2шт.

14

1789

HYDRAULIC HOSE,0.38" ID x 32.50", SAE 100R17, SAE J517, SAE J516

1шт.

15

4070

HYDRAULIC HOSE,0.38" ID x 43.00", SAE 100R17 Class 2, Type 2, SAE J517, SAE J516, SAE J846, SAE J1273, SAE J1227

3/8" x 43" fl, 1/2" mpt x 1/2" mpt

1шт.

100

SQ-913A

VALVE

assembly, hyd relief - with check

1шт.

Includes 22122, 9796, 1244, 1242, 6551, 3399

1шт.

Not Shown

1шт.

100

8581

LOCTITE

271

1шт.

Not Shown

1шт.
