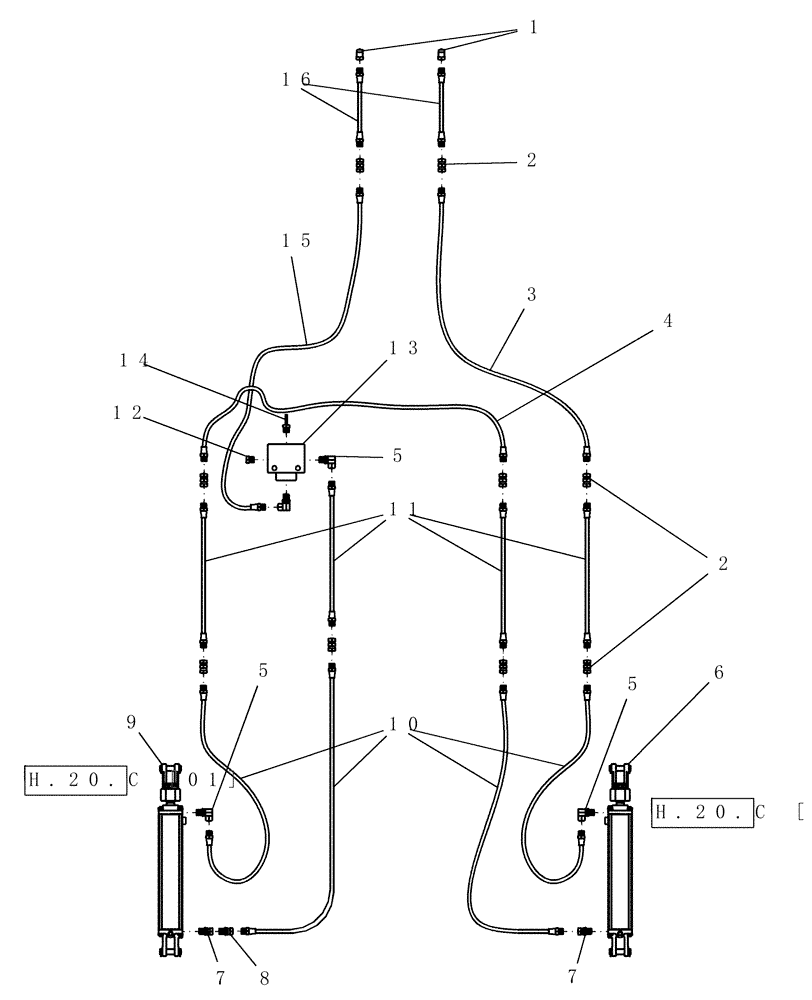

Запчасти Case IH SRX100 (H.20.G[10]) - WHEELED BOOM - HYDRAULIC LAYOUT H - Working Arm

1

9412

QUICK MALE COUPLING

1/2"

1шт.

2

3666

FITTING

hydraulic - swivel connector, 1/2" fpt x 1/2" fpt

1шт.

3

6174

HYDRAULIC HOSE,0.38" ID x 71.00", SAE 100R1

1/2" mpt x 1/2" mpt

1шт.

4

87710408

HYDRAULIC HOSE,9.65 mm ID x mm, SAE 100R17

1/2" mpt x 1/2" mpt

1шт.

5

3568

ELBOW

stl 90º 1/2"mb 1/2"fpx

1шт.

6

7955

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8" Monarch 3000 psi 1 1/8" rod

1шт.

7

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

8

1235

RESTRICTOR

fitting, hydraulic - swivel

1шт.

9

7954

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 3/4" x 8" Monarch 3000 psi 1 1/8" rod

1шт.

10

87508188

HYDRAULIC HOSE,9.53mm ID x 3454.4mm L

3/8" x 136" fl, 1/2" mpt x 1/2" mpt

1шт.

11

448425A1

HYDRAULIC HOSE

3/8" x 151" fl, 1/2" mpt x 1/2" mpt

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

13

51200150

CONTROL VALVE

depth stop assembly complete

1шт.

14

6284

CARTRIDGE

valve depth stop

1шт.

15

4878

HYDRAULIC HOSE

3/8" x 108" fl, 1/2" mpt x 1/2" mpt

1шт.

16

4074

HYDRAULIC HOSE

3/8" x 306" fl, 1/2" mpt x 1/2" mpt

1шт.
