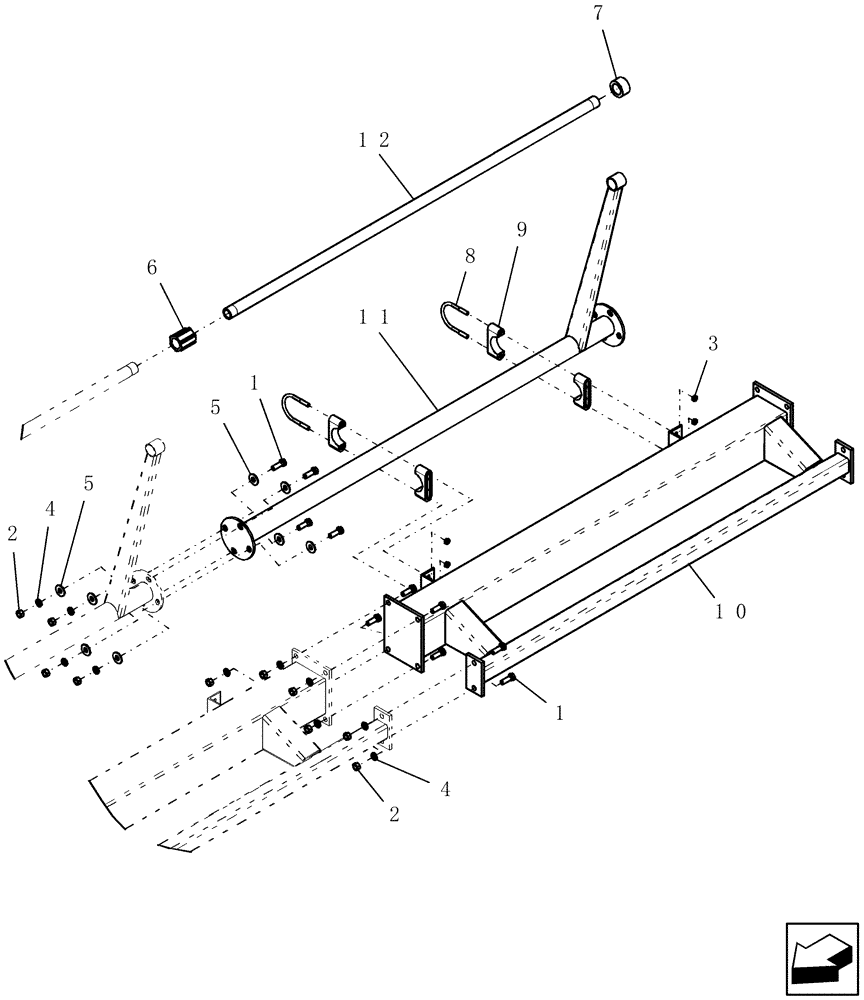

Запчасти Case IH SRX100 (E.10.C[05]) - WHEELED BOOM - 4, 10 AND 20 BOOM EXTENSIONS E - Body and Structure

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

10шт.

2

280431

NUT,1/2"-13, G5

10шт.

3

88902

NUT,3/8"-16

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

6

87558397

COUPLING,1" Poly Pipe Coupling

poly coupler 1fp

1шт.

7

87577690

CAP,1" Cap

fit poly 1" fp

1шт.

8

87577724

U-BOLT

ur 3/8" 2 7/8" w 3 7/8" d 1 1/4" thread

2шт.

9

87558400

HALF-BUSHING

molded 2 3/8" id

4шт.

10

SQ-621

BOOM EXTENSION

primary wing, 5'

1шт.

Shown

1шт.

10

SQ-620

BOOM EXTENSION

primary wing, 2'

1шт.

Not Shown

1шт.

10

SQ-622V2

BOOM EXTENSION

primary wing, 10'

1шт.

Not Shown

1шт.

11

SQ-631

FRAME

wing 5'

1шт.

Shown

1шт.

11

SQ-630

FRAME

wing 2'

1шт.

Not Shown

1шт.

11

SQ-632

FRAME

wing 10'

1шт.

Not Shown

1шт.

12

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

Cut to 59 1/2"

1шт.

20

1шт.

12

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

Shown

1шт.

Cut to 19 1/2"

1шт.

12

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20

1шт.

Not Shown

1шт.

Cut to 119 1/2"

1шт.

12

21720

PIPE

Stainless Steel 1" x 19-1/2" 1 3/8" Hole

1шт.

Not Shown

1шт.

12

21722

PIPE

Stainless Steel 1" x 119-1/2" 6 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

12

21721

PIPE

Stainless Steel 1" x 59-1/2" 3 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.
