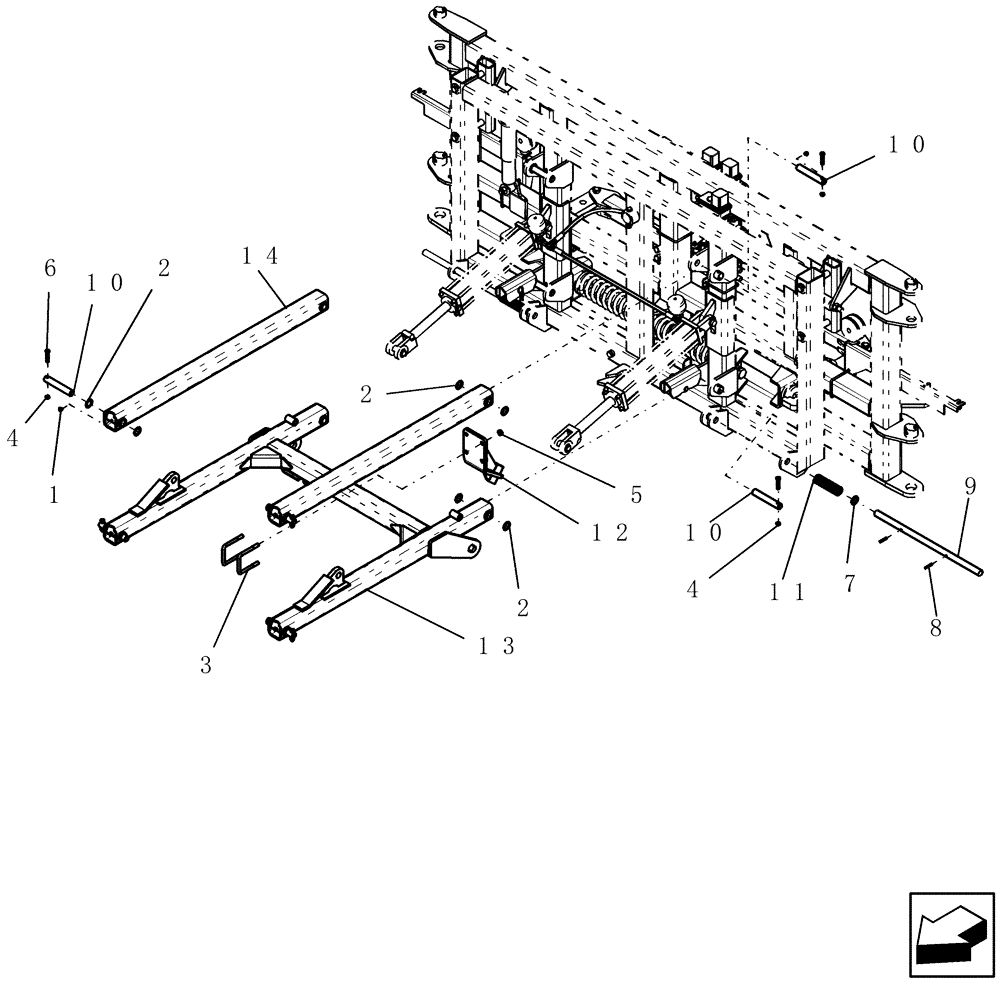

Запчасти Case IH SRX100 (E.10.B[05]) - MAIN FRAME - SUSPENDED BOOM - PARALLEL LINKS TO CENTER SECTION E - Body and Structure

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

8шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

20шт.

3

1404

U-BOLT

1/2" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

6шт.

4

88902

NUT,3/8"-16

10шт.

5

86992215

LOCK NUT,1/2"-13, GC

13шт.

6

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

7

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

8

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

4шт.

9

87449744

PIN

25.4 mm x 622 mm long with 2 holes

2шт.

10

87449745

PIN

25.4 mm x 159 mm long single hole retention

8шт.

11

87506237

COMPRESSION SPRING

13/64" wire 1 15/32" od x 5 19/32" long

2шт.

12

87501403

LOCK

center section

1шт.

13

87443201

LINK

lower parallel

1шт.

14

87443208

LINK

upper parallel

2шт.
