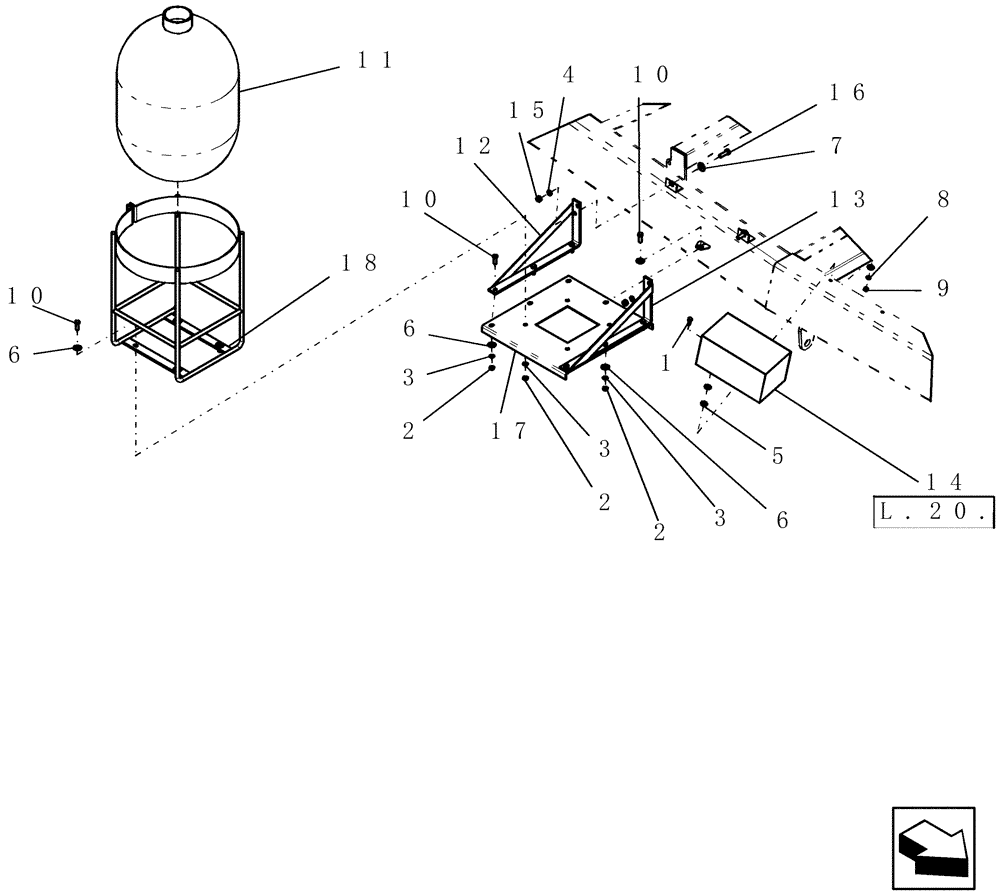

Запчасти Case IH SRX100 (L.20.D[03]) - MARKER, FOAM - MOUNTING L - Field Processing

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

280980

NUT,7/16"-14, GC

11шт.

3

81547

LOCK WASHER,7/16"

11шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

6

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

12шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9

9628503

NUT,3/8"-16, G5

2шт.

10

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

11шт.

11

21937

TANK

foam marker 25 us gallon

1шт.

12

87502507

BRACKET

platform lt

1шт.

13

87502503

BRACKET

platform rt

1шт.

14

87422960

POWER UNIT

assembly foam marker

1шт.

Refer to L.20.D [04]

1шт.

15

280431

NUT,1/2"-13, G5

2шт.

16

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

17

87502501

BRACKET

platform 25gal foam tank

1шт.

18

21939

STAND

foam marker tank

2шт.
