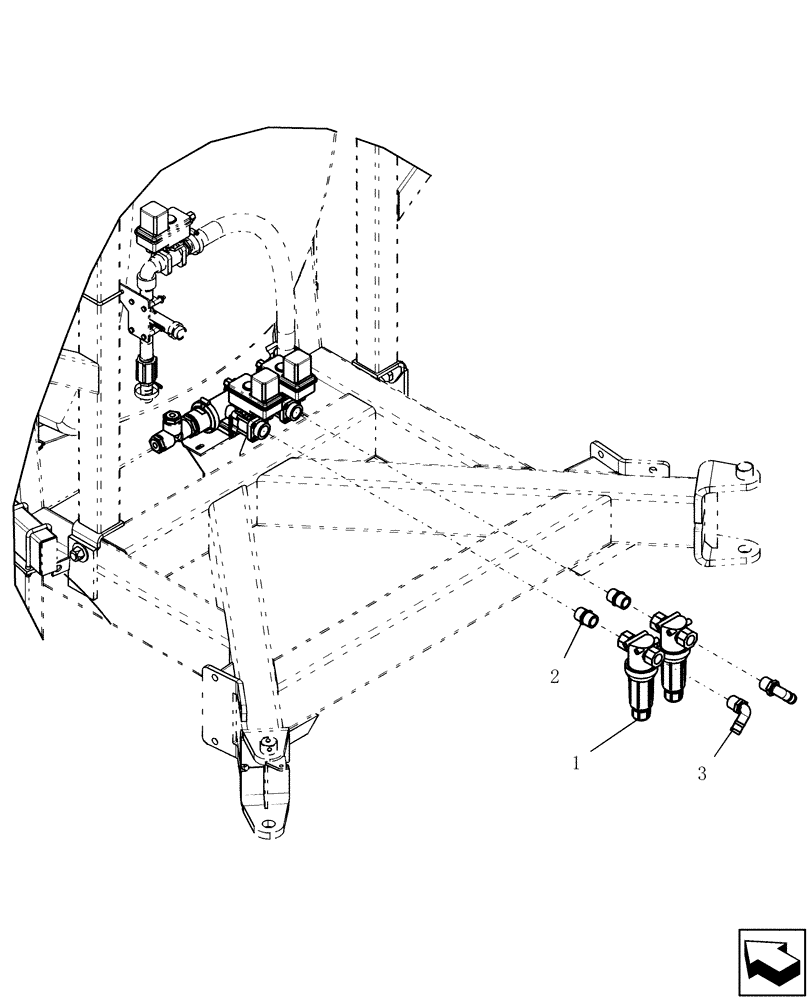

Запчасти Case IH SRX100 (L.20.B[14]) - OPTION - LINE STRAINERS L - Field Processing

1

87607917

STRAINER ELEMENT

1" 100M TeeJet

2шт.

1

87607918

SCREEN

1" 100 Micron, Green

2шт.

1

87607919

SCREEN

1" 50 Micron, Red

2шт.

1

84143078

O-RING

EPDM Rubber

2шт.

2

87608458

NIPPLE,1" Short Poly Nipple

poly nip 1"mpt short

2шт.

1

84143077

CAP

Strainer Poly

2шт.

3

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

2шт.

1

84143076

FILTER BOWL

Strainer Poly

2шт.

1

84136386

GASKET

EPDM Rubber

2шт.

1

84136385

HEAD

Strainer

2шт.
