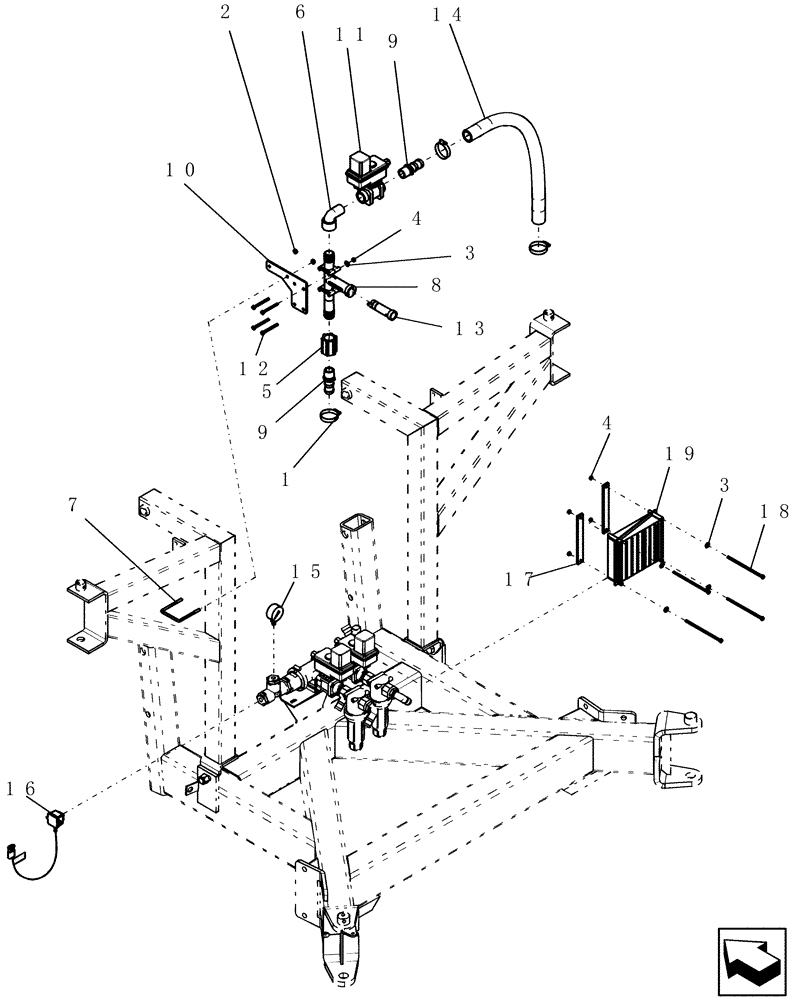

Запчасти Case IH SRX100 (A.30.A[02]) - OPTION - WHEELED BOOM FLEXCONTROL ELECTRONICS A - Distribution Systems

1

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

2

280736

NUT,5/16"-18, GC

2шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

8шт.

4

280129

NUT,1/4"-20

4шт.

5

87558397

COUPLING,1" Poly Pipe Coupling

poly coupler 1fp

1шт.

6

6757

ELBOW

fitting, poly 90º 1"mp 1"fp

1шт.

7

7611

U-BOLT

us 5/16" x 3 1/16" w x 3 3/4" d 1" thread

1шт.

8

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

9

21393

PIPE FITTING,1" Male Thread x 1-1/4" Hose Barb

poly straight adapter 1" mp 1 1/4" hb

2шт.

10

87503677

BRACKET

flow tee mount

1шт.

11

87505108

VALVE

elec pressure reg 344b

1шт.

12

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

4шт.

13

15577K

KIT

flow sensor replacement

1шт.

14

SQ-822

HOSE,1.25" ID x 34.00"

1шт.

Cut from bulk hose 1388

1шт.

15

21380

GAUGE

pressure 0-160 psi

1шт.

16

15263V3

SENSOR

pressure

1шт.

17

87505112

PLATE

remote mount

2шт.

18

413-4112

BOLT,Hex, 1/4" - 20 x 7", Gr 5

4шт.

19

87504878

ECU

4 line monitor

1шт.
