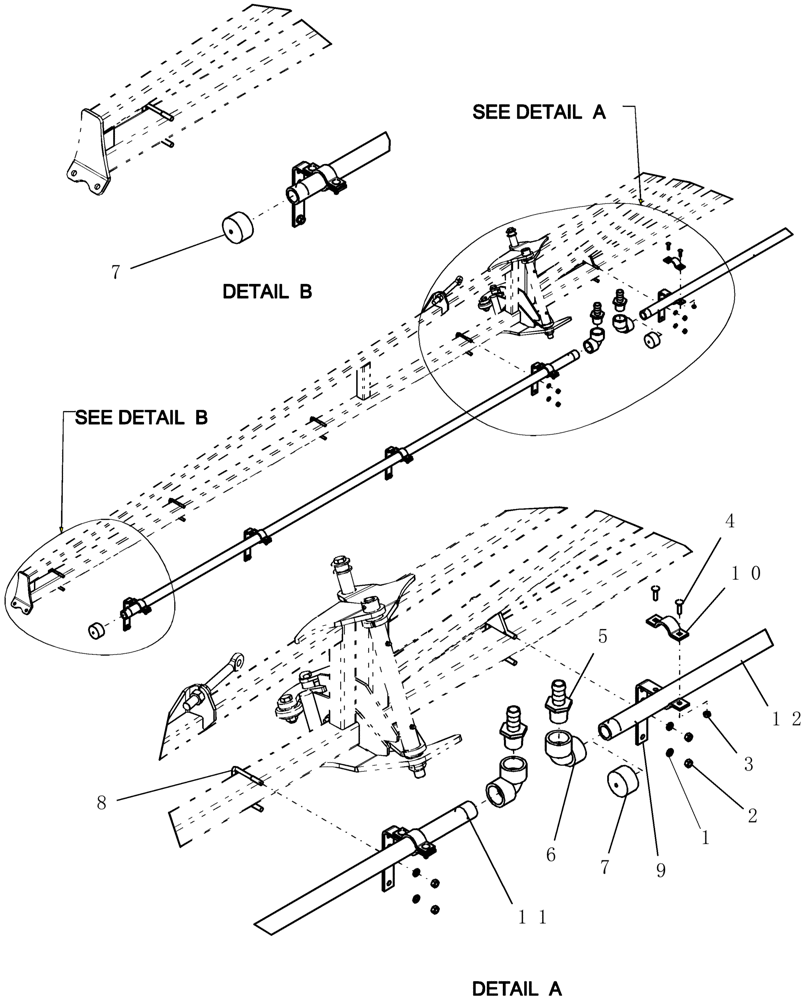

Запчасти Case IH SRX100 (L.20.B[07]) - PLUMBING - SUSPENDED BOOM - OUTER BOOM PLUMBING ASSEMBLY L - Field Processing

1

80681

LOCK WASHER,5/16"

21шт.

2

9635082

NUT,5/16" - 18, Gr 5

20шт.

3

280129

NUT,1/4"-20

20шт.

4

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

20шт.

5

6754

FITTING

poly straight adapter 1" mp 1" hb

3шт.

6

6758

ELBOW

fitting, poly 90º 1"fp 1"fp

3шт.

7

87577690

CAP,1" Cap

fit poly 1" fp

2шт.

8

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

10шт.

9

87502029

BAR

spray pipe mount

10шт.

10

SP-136

CLAMP

sprayboom

10шт.

11

87452550

PIPE

poly 1" x 94 1/2" long 5 hole

1шт.

Bulk pipe 23666 with holes is available

1шт.

12

87452553

PIPE

poly 1" x 170 1/2" long 9 hole

1шт.

Bulk pipe 23666 with holes is available

1шт.
