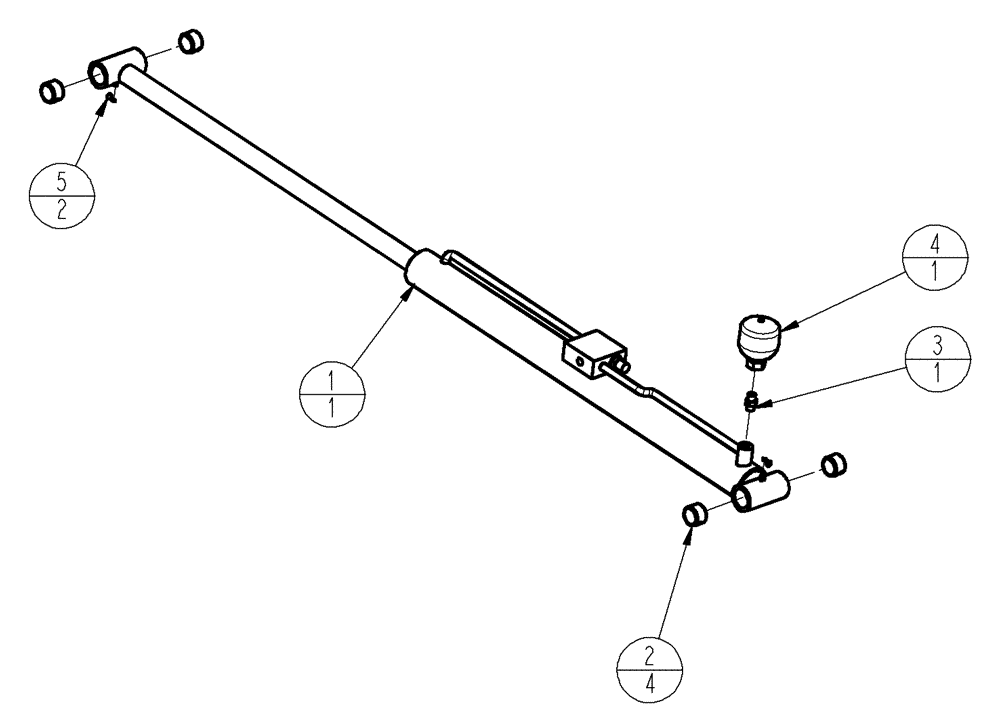

Запчасти Case IH SPX4410 (07-008) - CYLINDER GROUP, PARALLEL LINKS Cylinders

1

87266459

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 819.91mm Stroke

Hydraulic, 2.5 x 32.28 x 1.5

1шт.

See Fig. 07-009

1шт.

2

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

Spring

4шт.

3

BN313038

FITTING

6MB-6MB

1шт.

4

87267325

ACCUMULATOR

10 cu. 825 psi

1шт.

5

BN69951

CAP

Grease

2шт.
