Запчасти Case IH SPX4410 (01-028[02]) - RH COVER ASSEMBLY W/SWITCHES Cab Interior

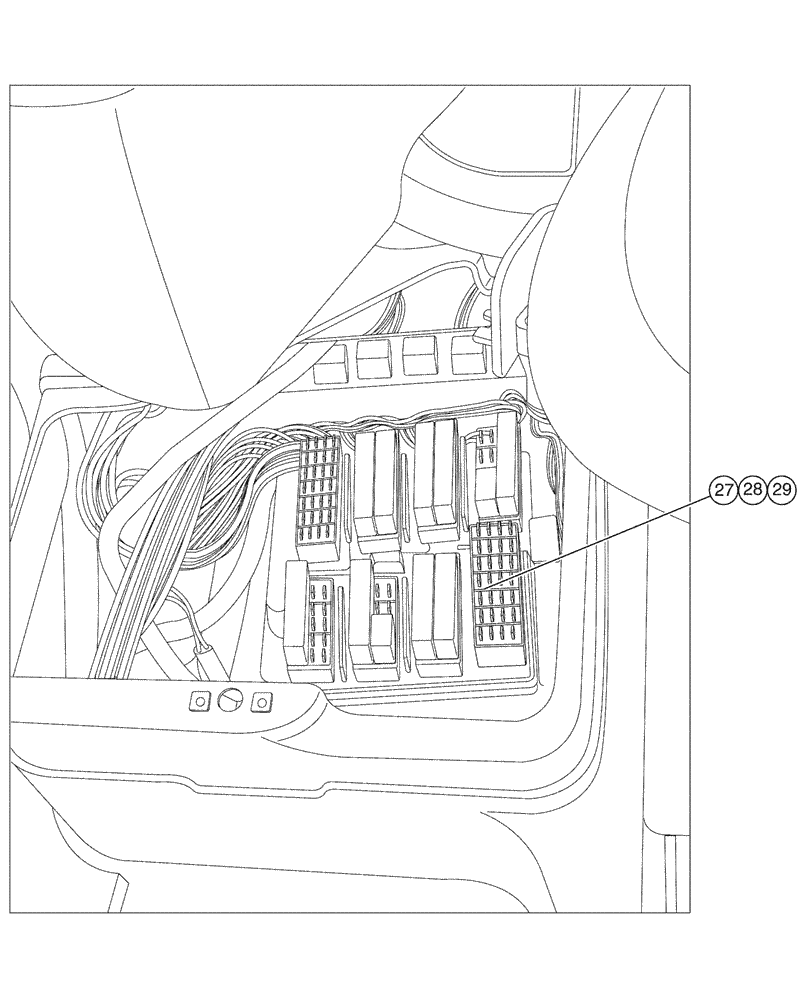

Схема запчастей Case IH SPX4410 - (01-028[02]) - RH COVER ASSEMBLY W/SWITCHES Cab Interior
29
28
27

Артикул

Название

Примечание

Количество

1

BN321614

CONSOLE

Control

1шт.

2

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

3

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

4

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

5

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

6

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

7

NS

NOT SERVICED

Cover Assembly, RH Console, SPX

1шт.

See Fig. 01-031

1шт.

8

128833A2

GUIDE

Propulsion Control Lever

1шт.

BN323495

ADAPTER

Reverse

1шт.

Associated Part Of Guide, Propulsion Control Lever , P/N 128833A2

1шт.

See Fig. 01-029

1шт.

BN323496

TOGGLE SWITCH

neutral safety switch

1шт.

Associated Part Of Guide, Propulsion Control Lever , P/N 128833A2

1шт.

See Fig. 01-029

1шт.

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

Associated Part Of Guide, Propulsion Control Lever , P/N 128833A2

1шт.

9

BN321912

SWITCH

assembly, foam activate

1шт.

10

BN321914

SWITCH

Boom Height

1шт.

BN325825

SPACER

Switch

1шт.

Associated Part Of Switch, ASM, Boom Height, P/N BN321914

1шт.

11

BN321913

SWITCH

boom fold LH

1шт.

BN325825

SPACER

Switch

1шт.

Associated Part Of Screw, Shoulder, P/N 561-707

1шт.

12

BN321915

SWITCH

Boom Fold RH

1шт.

BN325825

SPACER

Switch

1шт.

Associated Part Of Switch, ASM, Boom Fold, RH, P/N BN321915

1шт.

13

343262A1

SWITCH

ASM, Pump

1шт.

BN325825

SPACER

Switch

1шт.

Associated Part Of Switch, ASM, Pump, P/N 343262A1

1шт.

14

BN321916

SWITCH

Sparge Pressure

1шт.

BN325825

SPACER

Switch

1шт.

Associated Part Of Switch, ASM, Sparge Pressure, P/N BN321916

1шт.

15

BN322626

PLUG

Panel, NGR

1шт.

16

282056A1

PLUG

double d

1шт.

17

BN321907

SWITCH

ASM, Aim Command System Set

1шт.

18

BN321908

SWITCH

ASM, Aim Command Pressure Adjust

1шт.

19

BN321909

PRESSURE SWITCH

ASM, Aim Command Pressure Set

1шт.

20

BN321911

SWITCH

ASM, Fence Row

1шт.

21

BN321910

SWITCH

AsM, Boom Section

6шт.

23

118780A1

KNOB

Console Control

1шт.

24

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

25

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

26

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

1шт.

28

121412A1

FUSE,10A, Mini, Red

5шт.

29

121413A1

FUSE,15A, Mini, Blue

2шт.

NS

NOT SERVICED

Assembly, Sx Controller

1шт.

See Fig. 12-006

1шт.

87270533

WIRE HARNESS

BFC, RH Console

1шт.

See Fig. 12-019

1шт.

87271422

WIRE HARNESS

RH Compart

1шт.

See Fig. 12-019

1шт.

86986041

DECAL

Fuse/Relay

1шт.

Выбрано товаров: 59
