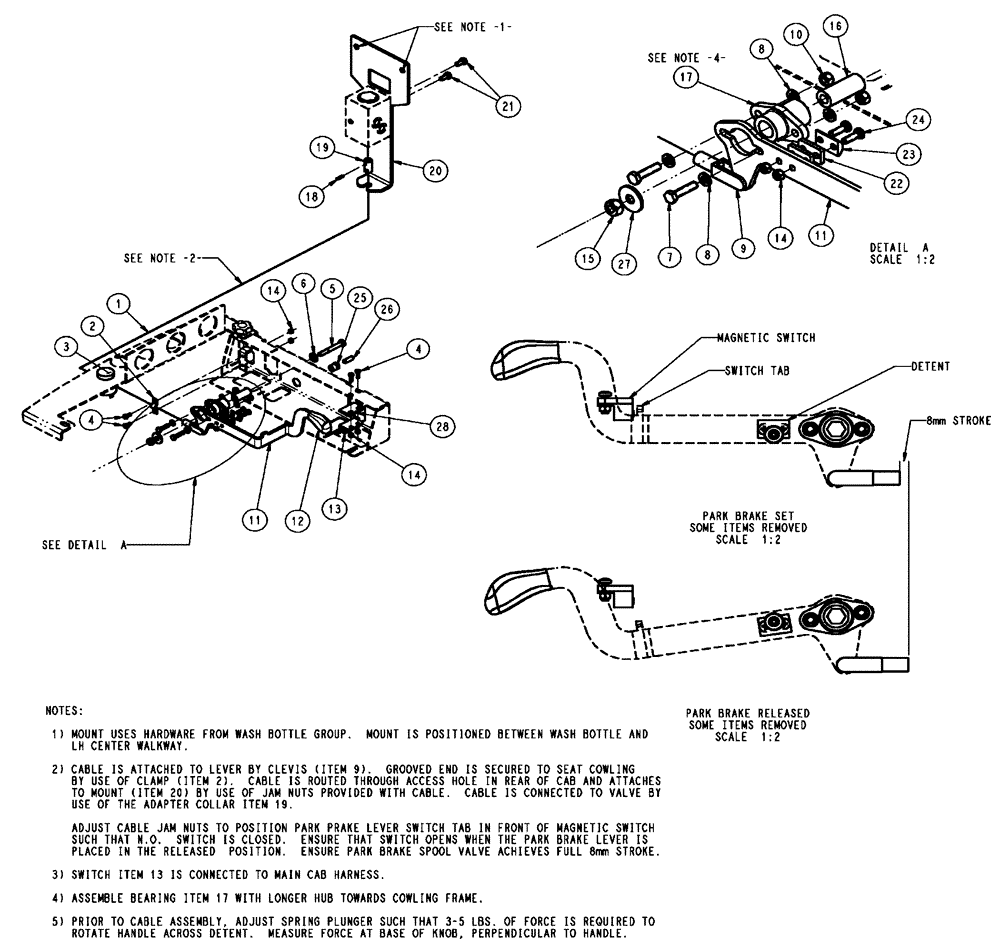

Запчасти Case IH SPX4410 (01-026) - PARK BRAKE GROUP Cab Interior

1

BN325067

CABLE

Park Brake

1шт.

2

A75815

CLAMP

Throttle Cable

1шт.

3

BN319663

BUZZER

Chime Tone

1шт.

4

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

5

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

BN320574

CLEVIS

w/Pin

1шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

87269335

CONTROL LEVER

Park Brake

1шт.

12

134071A1

KNOB

Throttle Control

1шт.

13

BN315498

SWITCH

Proximity

1шт.

14

87016571

NUT,M5, Cl 5

6шт.

15

86528579

NUT,M8 x 1.25

1шт.

16

87269336

BUSHING

Park Brake Lever

1шт.

17

A162299

BEARING,15.95mm ID

control lever

1шт.

18

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

19

BN325079

COLLAR

Valve Stem Adapter

1шт.

20

BN325080

BRACKET

Mount, Park Valve

1шт.

21

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

22

87269337

PLATE

Detent Spacer, Start Serial: 6600

2шт.

n

87269337

PLATE

Detent Spacer

1шт.

23

87266876

BLOCK

Detent

1шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

25

408566A1

INSERT,M8

Threaded Knurled Open

1шт.

26

87267355

SPRING

Plunger

1шт.

27

86528503

WASHER

M8, Fw, ZND-25 DIA./8.4Bore/2

1шт.

28

87269472

SPACER

Switch, Start Serial: 6600

1шт.
