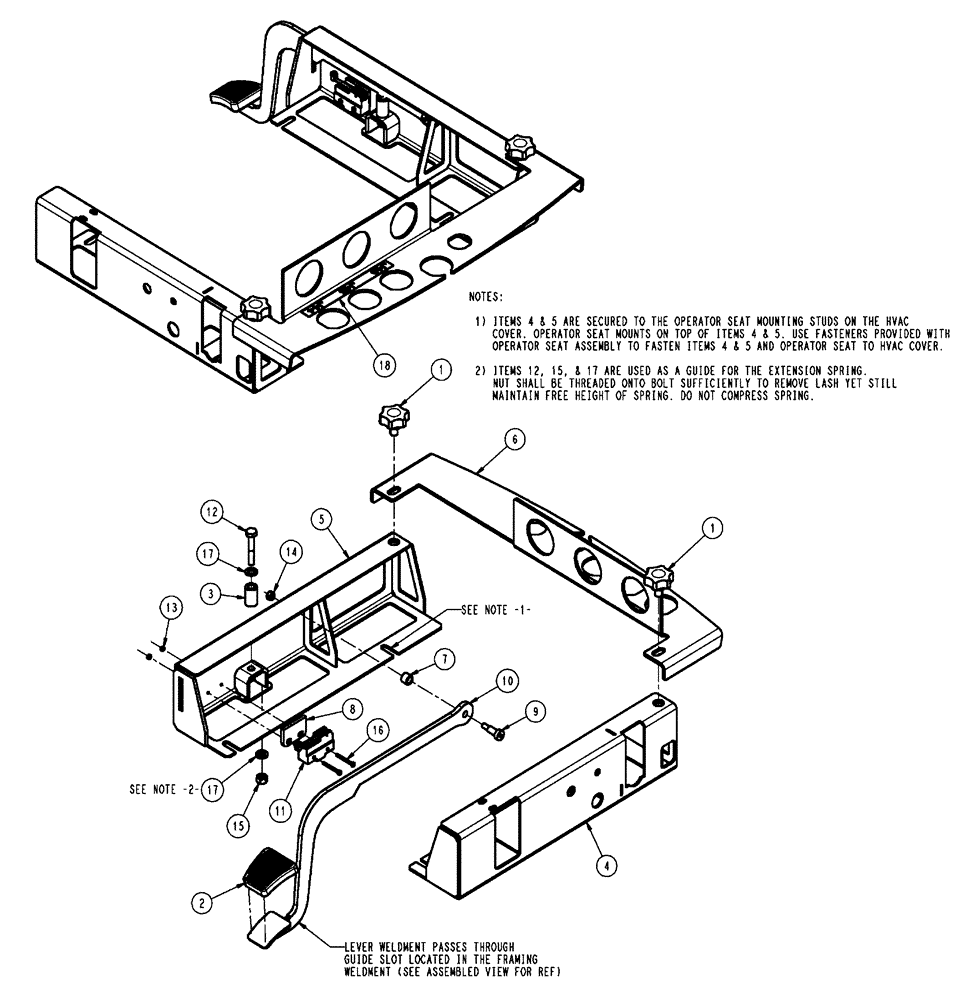

Запчасти Case IH SPX4410 (01-025) - TRACTION CONTROL GROUP Cab Interior

1

394133A1

KNOB

Battery Cover

2шт.

2

323657A1

PAD

Foot Release Pedal

1шт.

3

BN324420

SPRING

Die 5/8 X 11/32 X 1.00

1шт.

4

87269340

FRAME

Seat Cowl, LH, SPX

1шт.

5

342840A1

FRAME

seat cowling, RH

1шт.

6

342916A4

SUPPORT

Wire Harness

1шт.

7

BN324429

SPACER

Tube

1шт.

8

87269472

SPACER

Switch, Start Serial: 6600

1шт.

8

BN324430

SPACER

Switch Mount

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

BN324431

BOLT

M6-1, Shoulderbolt, 8 X 16

1шт.

10

BN324433

LEVER

Trac Control

1шт.

11

BN324434

HARNESS

Group, Trac Control

1шт.

12

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

13

824-1403

NUT,M3, Cl 5

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

1шт.

15

86528579

NUT,M8 x 1.25

1шт.

16

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

2шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

BN325979

DECAL

Interconnect I.D.

1шт.
