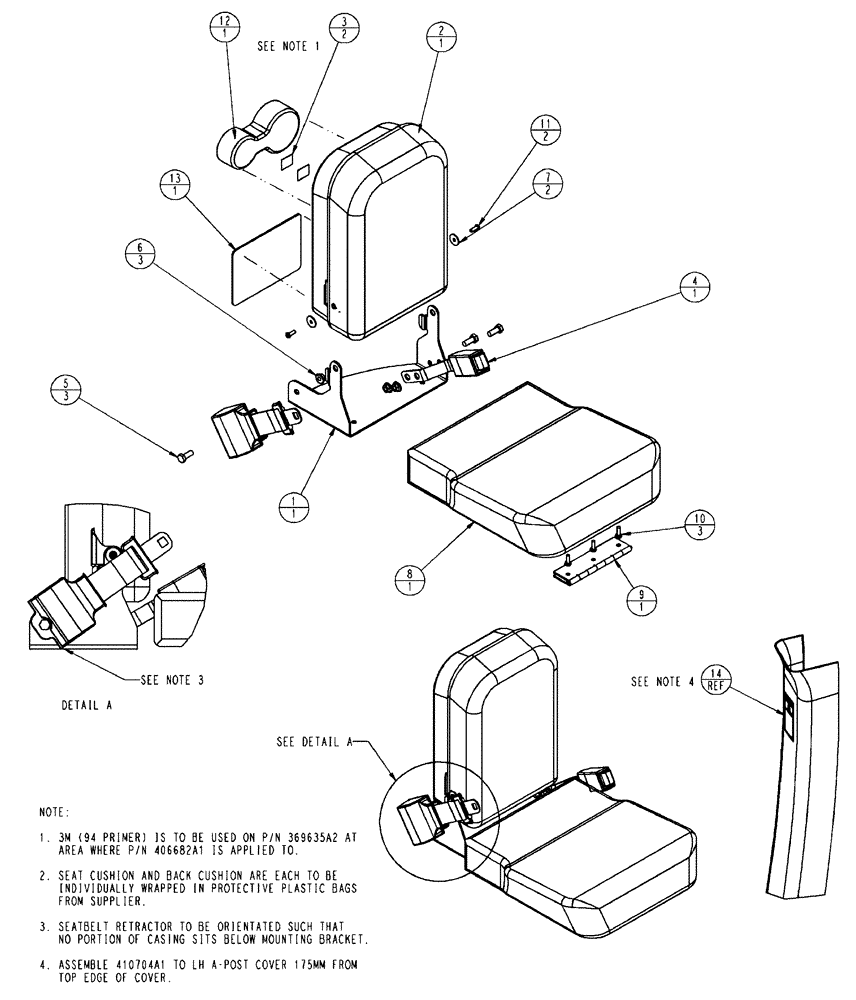

Запчасти Case IH SPX4410 (01-020) - INSTRUCTIONAL SEAT ASSEMBLY Cab Interior

1

249707A2

BRACKET

instructional seat

1шт.

2

359383A1

SEAT ASSY.

Rear Cushion

1шт.

3

406682A1

FASTENER

dual lock

2шт.

4

281926A2

SAFETY BELT

Instructional Seat

1шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8

87045196

CUSHION

instructional seat

1шт.

9

365674A1

HINGE

instructional seat

1шт.

10

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

11

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

12

369635A2

HOLDER

insert, cup

1шт.

13

394828A1

INSERT

insert, instructional seat

1шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.
