Запчасти Case IH SPX4410 (08-029) - BOOM, BREAKAWAY ASSEMBLY, 90 BEGINNING 11/2008 (09) - BOOMS

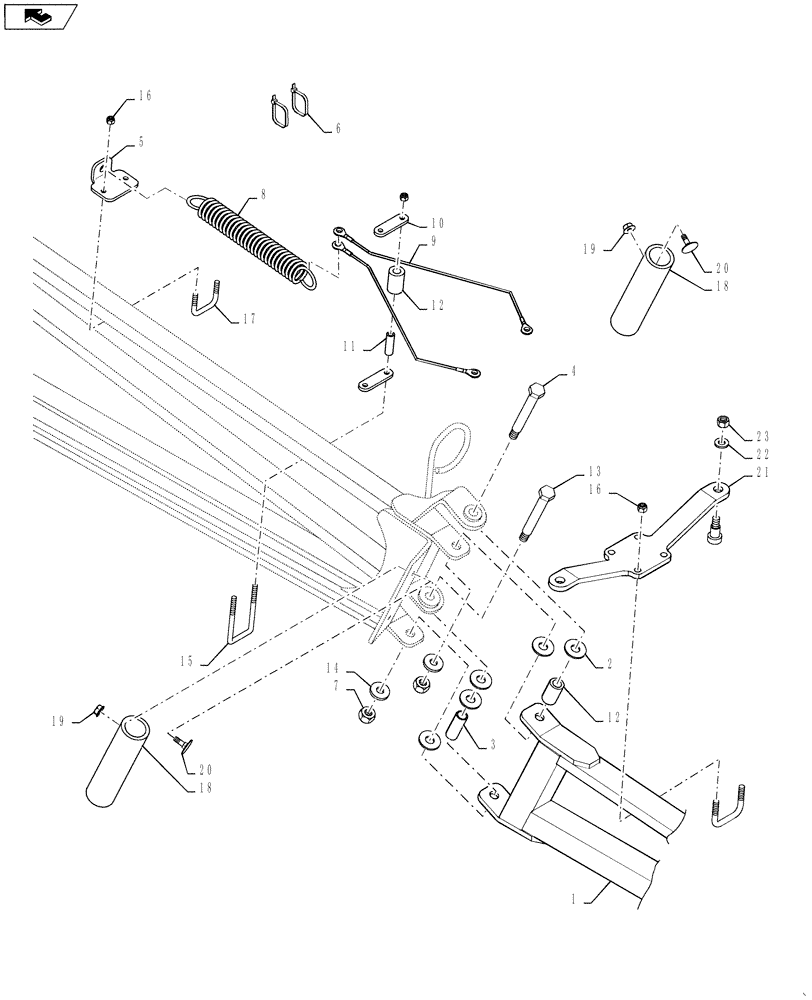

Схема запчастей Case IH SPX4410 - (08-029) - BOOM, BREAKAWAY ASSEMBLY, 90 BEGINNING 11/2008 (09) - BOOMS
17
5
18
8
18
16
1
home
16
20
21
15
7
12
23
9
12
4
19
11
2
14
20
19
3
6
22
13
10

Артикул

Название

Примечание

Количество

1

BN325289

FRAME

Boom, Breakaway

1шт.

2

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

38 od x 17 x 3.2, Nylon

6шт.

3

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

25 od x 16 id x 68 long, Nylatron

1шт.

4

84189224

BOLT

M16 X 110

1шт.

5

84217032

PLATE

BREAKAWAY

1шт.

6

BN570007

STRAP

Black Only .12-4.0 Band

2шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

BN305410

SPRING

1.67 X 0.283 X12

1шт.

9

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

10

BN308039

PLATE

Spacer

2шт.

11

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

2шт.

12

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

3шт.

13

84189219

BOLT

M16 x 120

1шт.

14

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 MM HDN DOR

2шт.

15

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

1шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

17

BN68062

U-BOLT

BOLT "U" 3/8

3шт.

18

87706358

HOSE,38.10 mm ID

Bumper

2шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

20

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

21

BN309505

ANGLE

WELD, BREAKAWAY

1шт.

22

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

23

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

Выбрано товаров: 23
