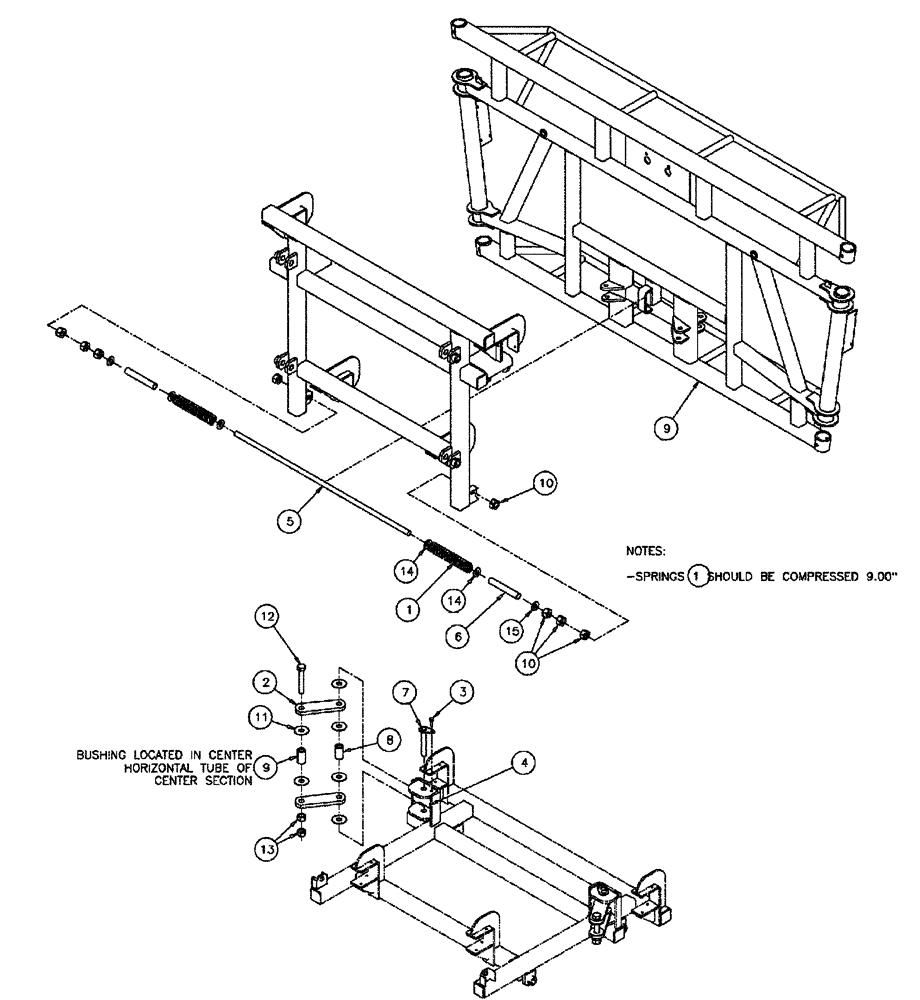

Запчасти Case IH SPX4410 (08-020) - BOOM, CENTER SECTION GROUP (09) - BOOMS

1

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

2

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

5

BN306783

SHAFT

Threaded 1"

1шт.

6

BN306784

TUBE

RND Spacer 1.25 X 12G

2шт.

7

BN306785

PIN

Weldment

2шт.

8

BN308003

BUSHING

Hanger

2шт.

9

87271154

FRAMEWORK

Center Section, Start Serial: 7403

1шт.

9

86986812

BOOM

Center Section

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

10

87553819

JAM NUT

1"-8 Hex, Jam

6шт.

11

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

12шт.

12

BN50363

BOLT

1-14 X 6, HH, 5, Plate

2шт.

13

425-1516

JAM NUT,Jam, 1"-14, G5

4шт.

14

896-11030

WASHER,33mm ID x 56mm OD x 5mm Thk

6шт.
