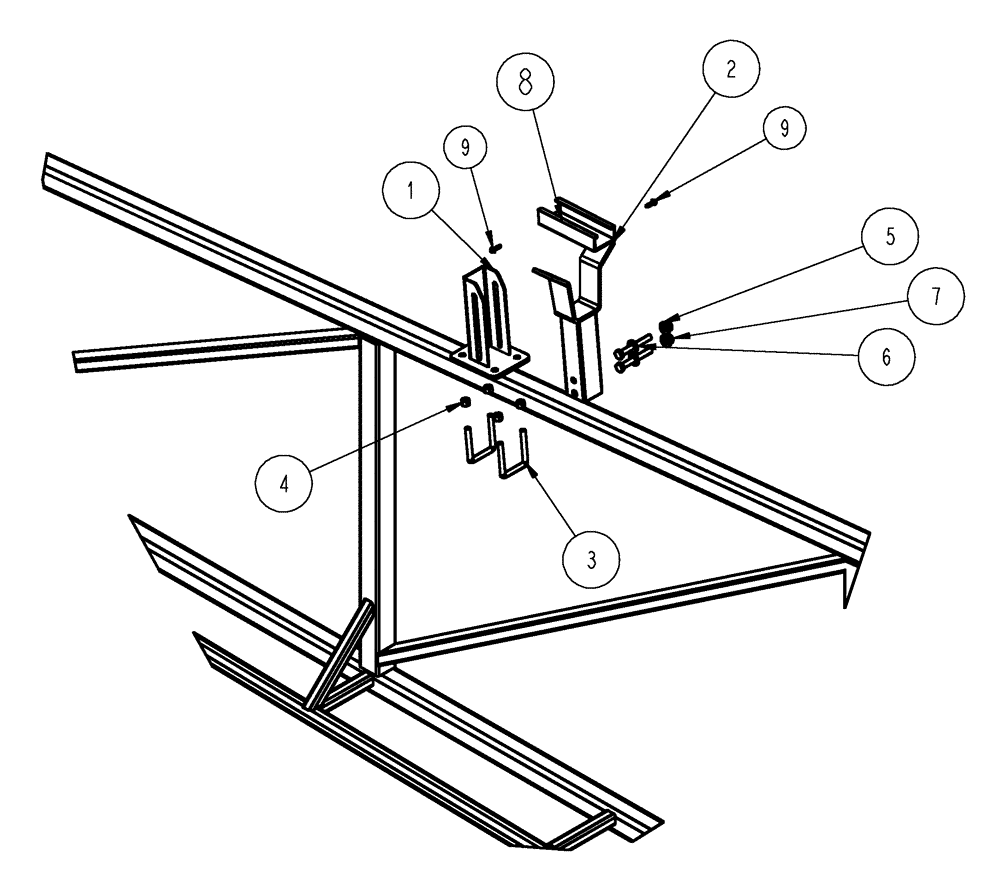

Запчасти Case IH SPX4410 (08-017) - OUTER CRADLE ASSEMBLY (09) - BOOMS

1

87568915

SUPPORT

Lower Cradle

2шт.

2

87568911

SUPPORT

Upper Cradle

2шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

4

87343970

NUT,3/8"-16, G8, DOR

8шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

6

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

8

87573707

CHANNEL

snap-on 1" x 2" x 6"

2шт.

9

84206102

SCREW,7/8" - 24

12-24X7/8 HWH 4 TEK

4шт.
