(08-002) - PIVOT GROUP, LOWER CENTER SECTION

Запчасти Case IH SPX4410 (08-002) - PIVOT GROUP, LOWER CENTER SECTION (09) - BOOMS

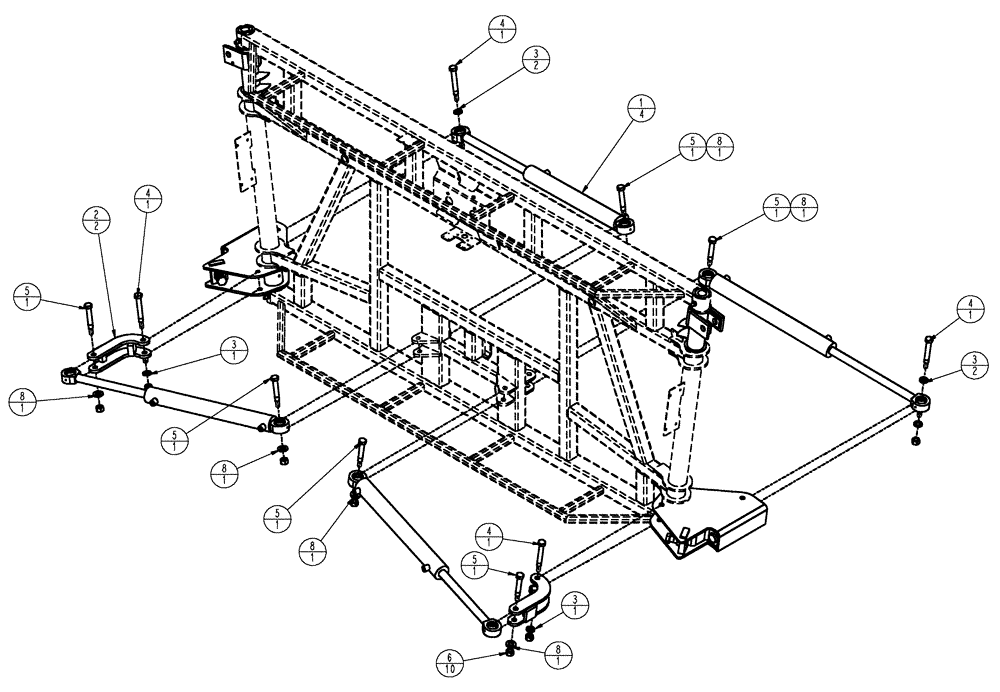

Схема запчастей Case IH SPX4410 - (08-002) - PIVOT GROUP, LOWER CENTER SECTION (09) - BOOMS
4
3
5
4
4
8
5
5
1
6
5
8
3
3
5
4
8
8
8
8
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Hydraulic, 2.5 x 21.62 x 1.375

4шт.

See Fig. 07-004

1шт.

87266460R

REMAN-HYD CYLINDER

SPX4410 - SPRAYER (6/04-8/06)

4шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

2

87272752

SUPPORTING ARM

Inner Breakaway

2шт.

3

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

2шт.

4

BN310280

BOLT

M20 X 125 Shank, Cutoff

4шт.

5

BN310279

BOLT

M20 X 108 Shank, Cutoff

6шт.

6

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

10шт.

7

331-37

SPARE PART

FLUID, 1 lb. Lithium #2 grease

1шт.

8

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

6шт.

9

BN1243001

LOCTITE

243-31 Removable

1шт.
