(12-018) - REAR STOP, SIGNAL ASSEMBLY

Запчасти Case IH SPX4410 (12-018) - REAR STOP, SIGNAL ASSEMBLY (06) - ELECTRICAL

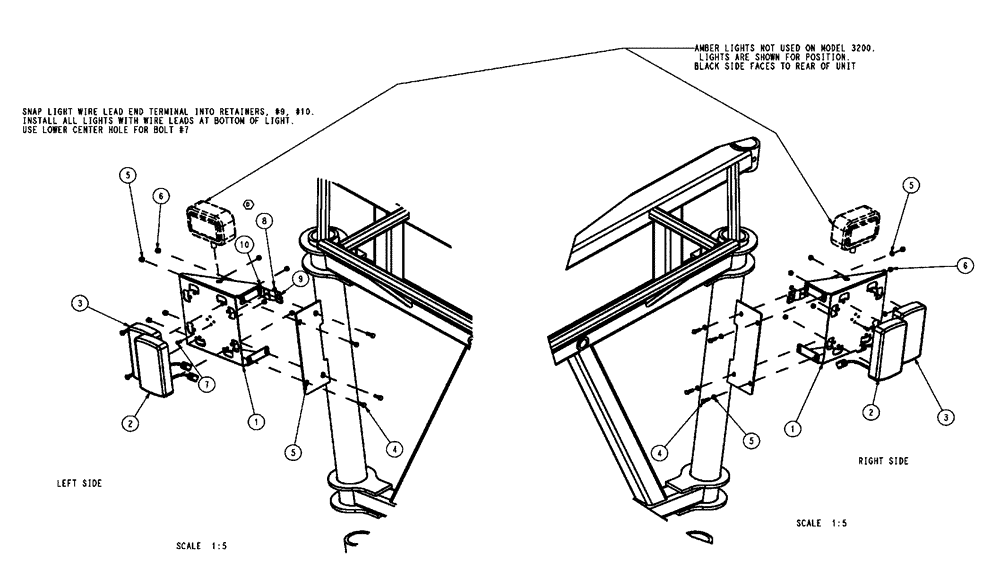

Схема запчастей Case IH SPX4410 - (12-018) - REAR STOP, SIGNAL ASSEMBLY (06) - ELECTRICAL
6
3
2
4
2
7
1
10
4
5
1
8
5
6
5
5
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern

2шт.

2

84385294

LAMP

LED Red, 12V, 24 LED Pattern

2шт.

3

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

2шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

16шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

6

353308

NUT,M6 x 1.0, Cl 8

16шт.
