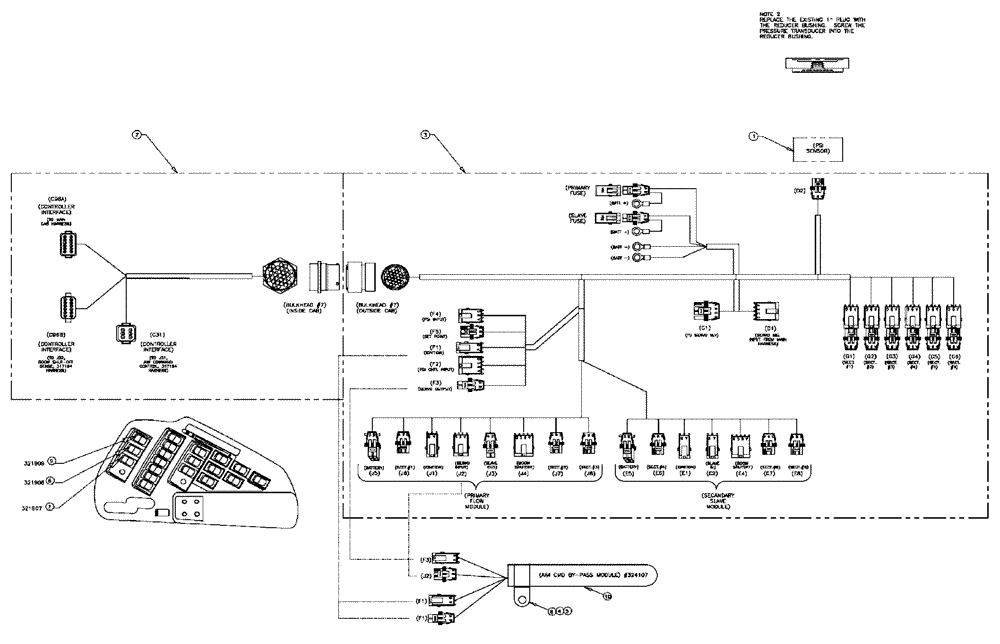

Запчасти Case IH SPX4410 (12-012) - AIM COMMAND ELECTRICAL GROUP (06) - ELECTRICAL

1

87272273

SENSOR

Harness Assembly, AIM Command

1шт.

87271580

SENSOR

pressure aim command

1шт.

Associated Part Of Sensor, Harness Assembly, P/N 87272273

1шт.

87271834

WIRE HARNESS

Extension, Pressure Sensor

1шт.

Associated Part Of Sensor, Harness Assembly, P/N 87272273

1шт.

2

87270253

HARNESS

Aim CMD Cab

1шт.

See Fig. 12-013

1шт.

3

87265619

HARNESS

Aim CMD Frame

1шт.

See Fig. 12-013

1шт.

4

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

6

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

7

BN321907

SWITCH

AIM CMD System Set

1шт.

8

BN321908

SWITCH

AIM CMD Pressure ADJ.

1шт.

9

BN321909

PRESSURE SWITCH

AIM CMD Pressure Set

1шт.

10

BN324107

MODULE

AIM CMD By-Pass

1шт.

11

344498A1

VALVE

group, B isolators

1шт.

12

87268800

ADAPTER

Adapter, PSI, AIM

1шт.
