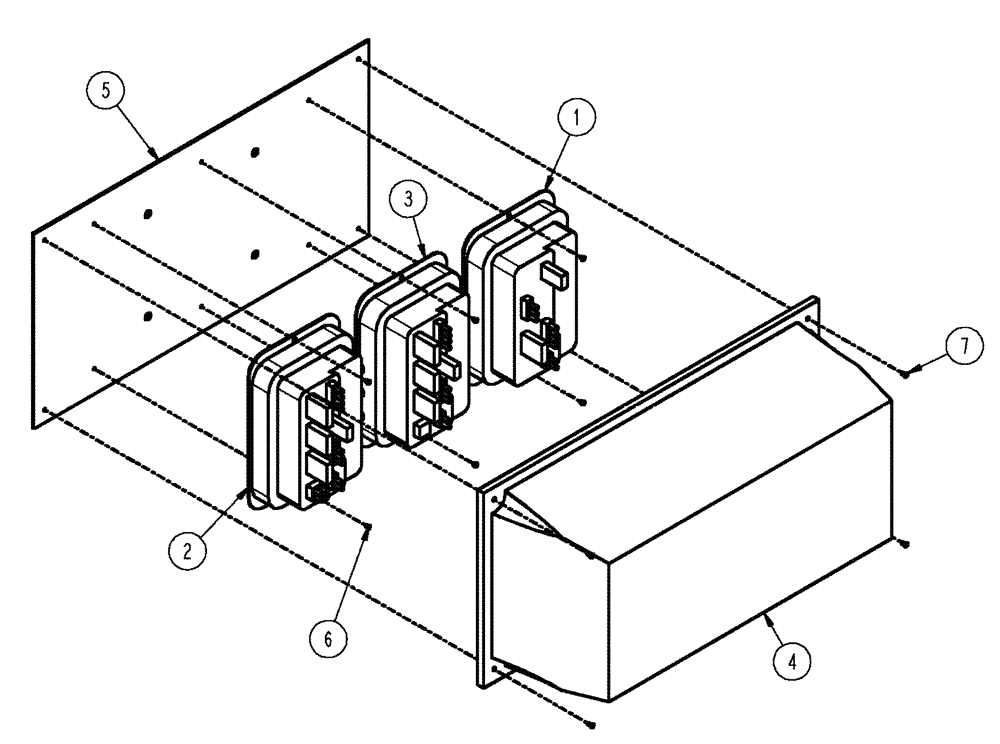

Запчасти Case IH SPX4410 (12-007[02]) - AIM COMMAND PACKAGE, PWM 1-6 SEC (06) - ELECTRICAL

0

84230046

MODULE

PACKAGE, AIM CMD, PWM 1-6 SECT R. MT.

1шт.

1

87542956

MODULE

Module, PWM Pressure Control

1шт.

1

84230038R

REMAN-MODULE

PWM Pressure Control Module

1шт.

1

84230038C

CORE-MODULE

Return Number

1шт.

2

87271843

MODULE

Slave, AIM Command

1шт.

87271843R

REMAN ELECT CONTROL

SPX4410 - SPRAYER - 6/04-8/06,

1шт.

87271843C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

87271842

MODULE

Master, AIM Command

1шт.

3

87271842R

REMAN-MODULE

AIM Command Module

1шт.

3

87271842C

CORE-MODULE

Return Number

1шт.

4

87397540

COVER

AIM Command, Rear Mount

1шт.

5

BN310936

MOUNTING PLATE

Synchro module

1шт.

6

BN314296

SCREW

MODULE MOUNTING

6шт.

7

BN314297

SCREW

COVER MOUNTING

4шт.
