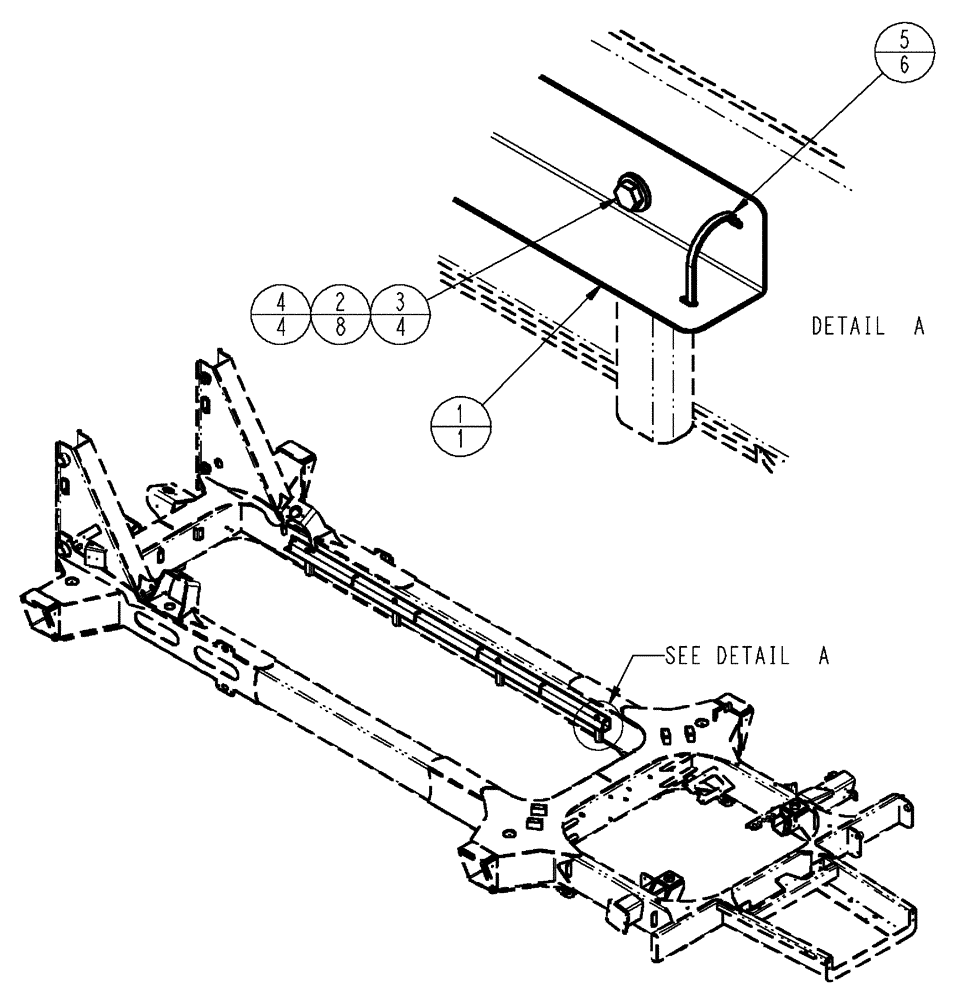

Запчасти Case IH SPX4410 (12-005) - HARNESS MOUNTING GROUP (06) - ELECTRICAL

1

343951A1

CHANNEL

Electrical Harnesses

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

5

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

6

86511444

FLANGE NUT,Hex, M6 x 1

8шт.
