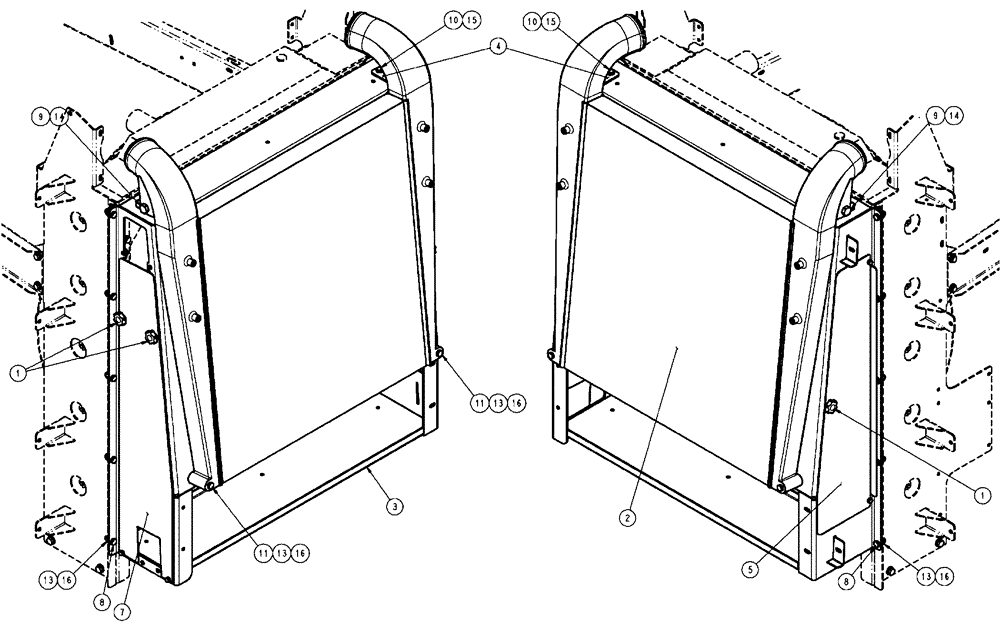

Запчасти Case IH SPX4410 (03-044) - MOUNT GROUP, CAC (01) - ENGINE

1

342417A1

KNOB

M8 X 1.25

3шт.

2

437398A1

AFTERCOOLER

Charge Air, Turb

1шт.

3

87267476

MOUNTING PLATE

Frame, Cooler

1шт.

4

BN324237

BRACKET

Cac

2шт.

5

87267574

DOOR

LH Access

1шт.

7

87267575

COVER

Access Hole, RH

1шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

10шт.

9

86509867

BOLT,Hex Flg, M16 x 40mm

2шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

14

832-46416

NUT,M16 x 2, Cl 8

2шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

12шт.
