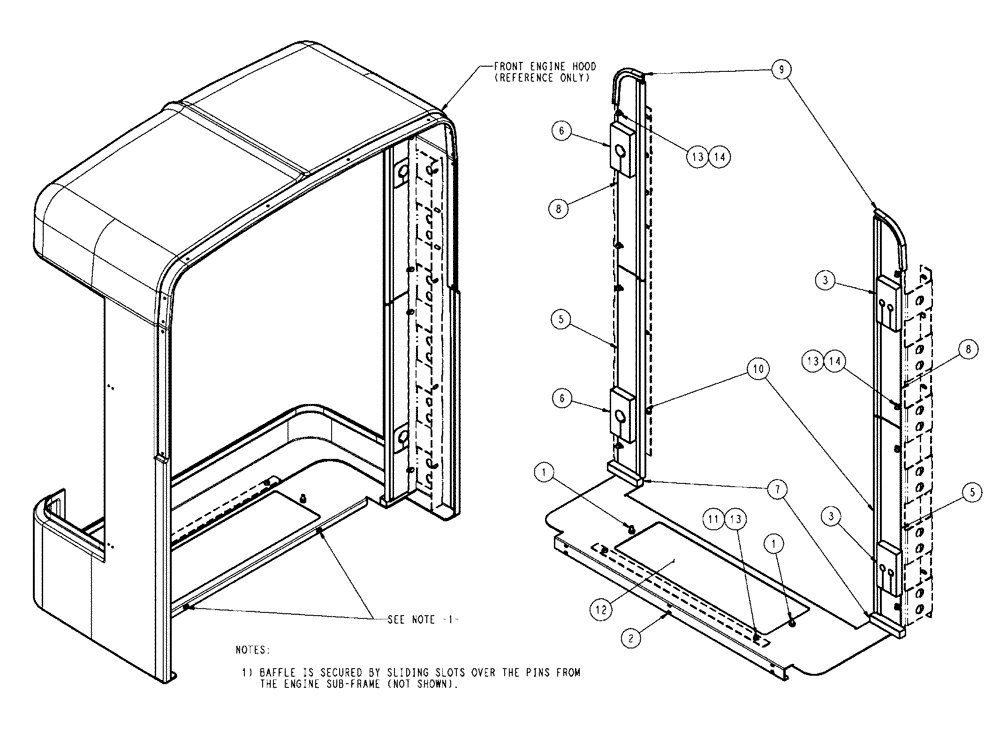

Запчасти Case IH SPX4410 (03-040) - RADIATOR GROUP (01) - ENGINE

1

342417A1

KNOB

M8 X 1.25

2шт.

2

87267789

BAFFLE

Lower Radiator

1шт.

3

87270178

SEAL

Foam, Start Serial: 6285

2шт.

3

BN323074

SEAL

Foam

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

87270181

BAFFLE

Radiator Sides, Start Serial: 6285

2шт.

5

BN324102

BAFFLE

Radiator Sides

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN324103

BAFFLE

Radiator Sides

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

87270179

SEAL

Foam, Start Serial: 6285

2шт.

6

BN324104

FOAM INSULATION

Seal

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

7

BN324105

FOAM INSULATION

Seal

2шт.

8

87270180

BAFFLE

Radiator, Sides, Start Serial: 6285

2шт.

8

BN324811

BAFFLE

Radiator, Sides

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

BN324816

SEAL

Clip On

2шт.

10

87270182

SEAL

Clip On, Start Serial: 6285

4шт.

10

BN324817

SEAL

Clip On

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

12

86986384

COVER

Lower Rad Access

1шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

14

86528579

NUT,M8 x 1.25

8шт.
