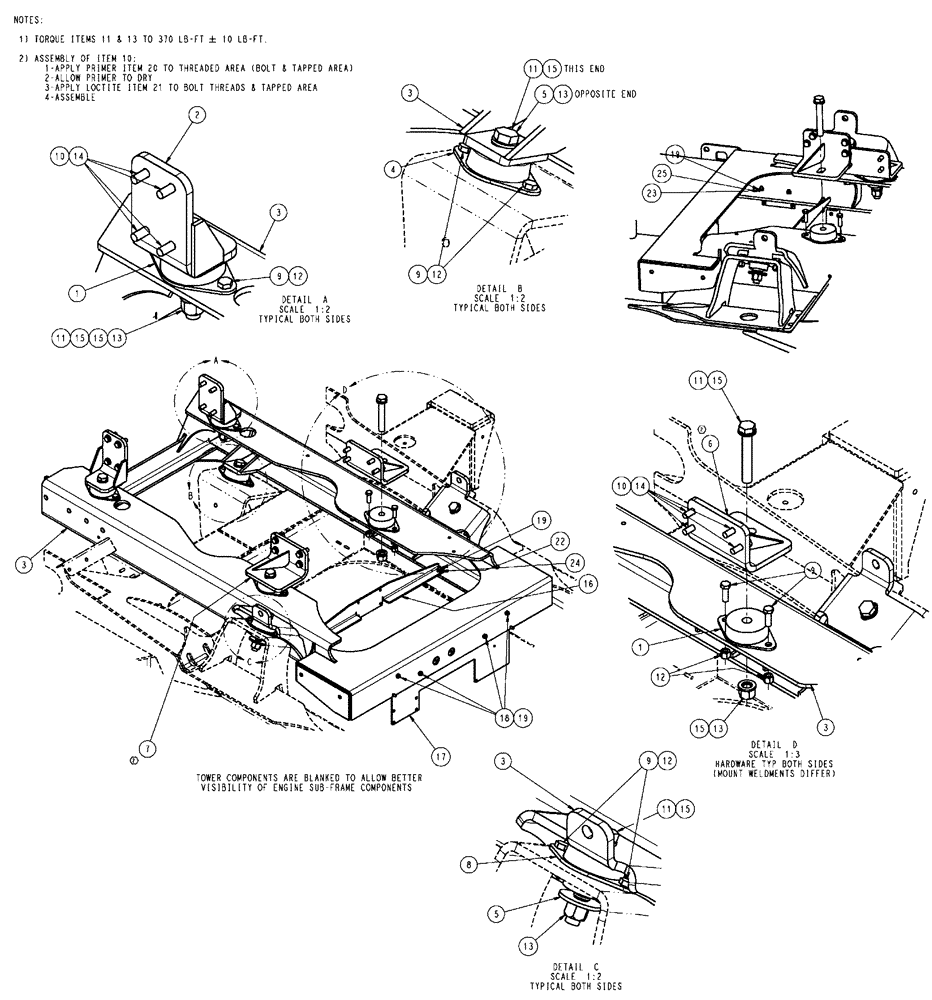

Запчасти Case IH SPX4410 (03-036) - ENGINE MOUNTING GROUP (01) - ENGINE

1

BN304252

MOUNTING PARTS

Motor 778

4шт.

2

343867A1

MOUNTING PLATE

engine

2шт.

3

87268621

MOUNTING PLATE

Frame, Engine

1шт.

4

BN322889

MOUNTING PLATE

Front Engine

2шт.

5

BN322925

WASHER

Rebound M20

4шт.

6

87266227

MOUNTING PLATE

Engine, LH

1шт.

7

87266228

MOUNTING PLATE

Engine, RH

1шт.

8

BN324263

MOUNTING PLATE

535 Rear Engine

2шт.

9

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

16шт.

10

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

16шт.

11

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

8шт.

12

100038

NUT,M12 x 1.75, Cl 8

16шт.

13

832-10420

NUT,M20 x 2.5, Cl 8

8шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

15

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

12шт.

16

87266506

BRACKET, SUPPORTING

Mount, Valve

1шт.

17

342909A1

MOUNTING PLATE

HYD Valves

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

86528579

NUT,M8 x 1.25

8шт.

20

BN307971

SEALANT

thread

1шт.

21

BN1243001

LOCTITE

243-31 Removable

1шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

24

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

25

87266513

BRACKET, SUPPORTING

Mount, Return Manifold

1шт.
