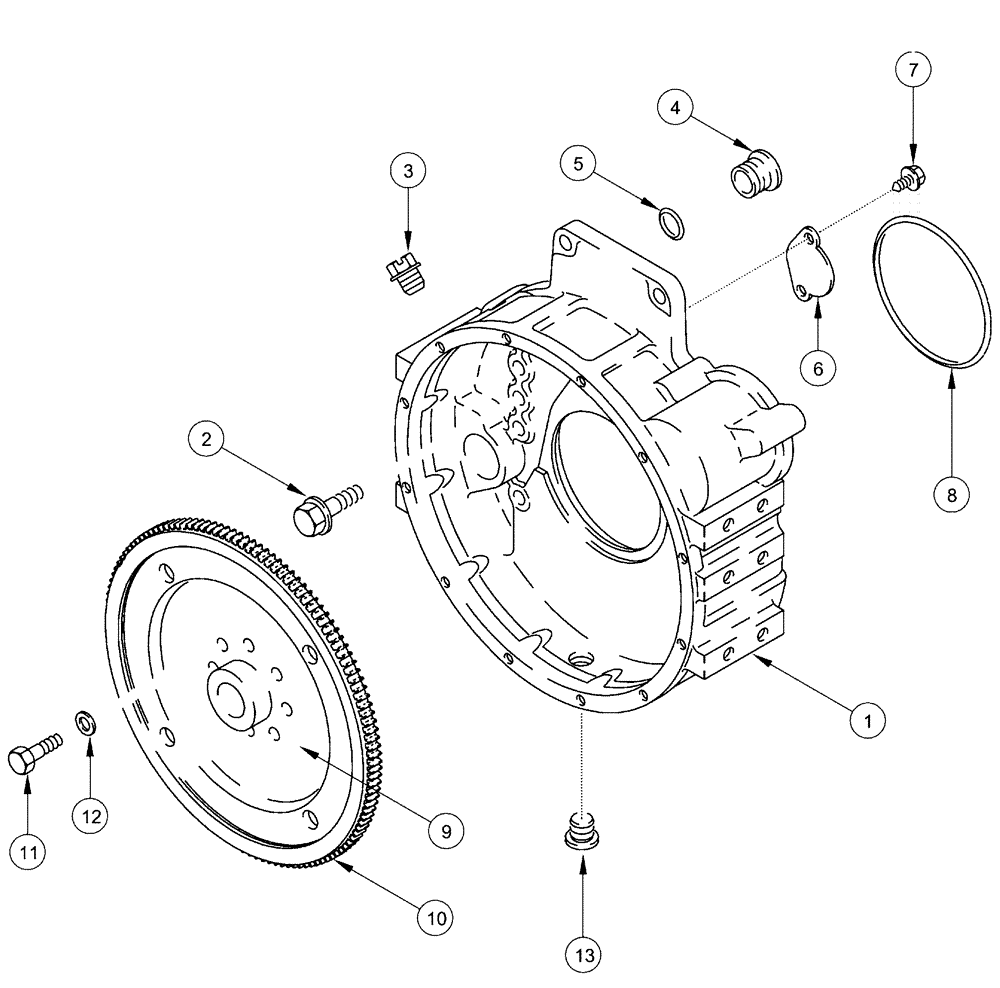

Запчасти Case IH SPX4410 (03-020) - FLYWHEEL HOUSING (01) - ENGINE

1

J908799

HOUSING

Flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

3

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

4

J910248

PLUG

Flywheel Housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J925234

PLATE

Cover

1шт.

7

J912072

SELF-TAP SCREW

Hex Washer Head, Special, 8 - 1.25 x 15 mm

2шт.

8

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block

1шт.

9

87690953

FLYWHEEL

1шт.

10

J905427

GEAR

Ring, Flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

Flat, Special

8шт.

13

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.
