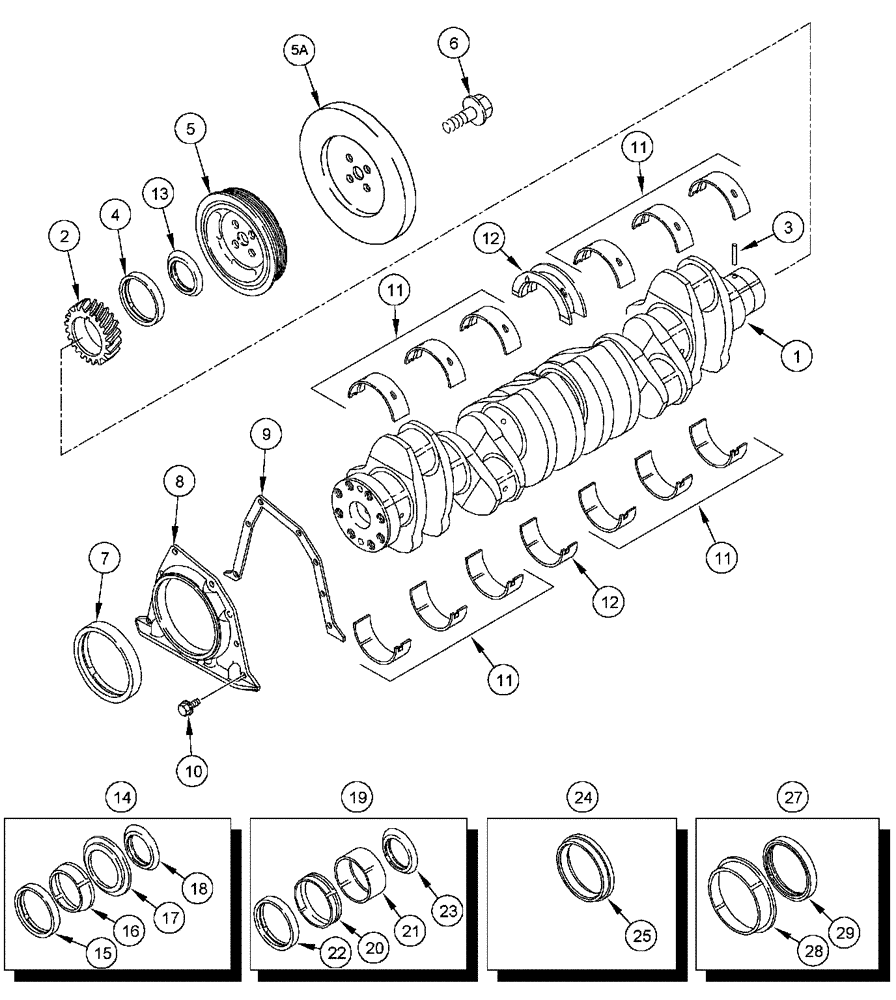

Запчасти Case IH SPX4410 (03-019) - CRANKSHAFT (01) - ENGINE

JR918986

REMAN-CRANKSHAFT

Crankshaft Assembly - Engine, Remanufactured, Component Parts Shown On This fig. Do Not Apply To The Remanufactured Assembly

1шт.

JC918986

CORE-CRANKSHAFT

Return Number - Use This Part Number To Return Crankshaft Core For Credit When Using A Remanufactured Assembly

1шт.

J918986

CRANKSHAFT

Crankshaft Assembly - Engine, New

1шт.

1

NSS

NOT SOLD SEPARAT

Crankshaft -

1шт.

2

J918776

GEAR

Gear - Crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Pin - Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - Oil, Front (Order Ref. 14, A77790)

1шт.

5

J943660

PULLEY

Pulley - Fan

1шт.

5a

J925570

DAMPER

Damper-Vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear (Order Ref. 24, J934486)

1шт.

8

J933384

REAR COVER

Retainer - Seal, Rear Cover

1шт.

9

J914301

GASKET

Gasket - Rear Cover Retainer

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

Hex Flange, M6 x 16 G10.9

8шт.

11

J945930

BEARING SET

Main, Upper and Lower Set, Standard

6шт.

11

J945931

BEARING SET

Main, Upper And Lower Set, 0.25 mm Undersize

6шт.

11

J945932

BEARING SET

Main, Upper And Lower Set, 0.50 mm Undersize

6шт.

11

J945933

BEARING SET

Main, Upper And Lower Set, 0.75 mm Undersize

6шт.

11

J945734

Bearing - Main, Upper And Lower Set, 1.00 MM Undersize

6шт.

12

J945929

THRUST BEARING

Main Thrust, Upper And Lower Set, Standard

1шт.

12

J945922

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersize

1шт.

12

J945923

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize

1шт.

12

J945924

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersize

1шт.

12

J945925

THRUST BEARING

Main Thrust, Upper and Lower Set, 1.0 mm Undersize

1шт.

12

J945926

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard JourNal Diameter, 0.25 mm Oversize Thrust Width

1шт.

12

J945927

THRUST BEARING

Main Thrust, Upper and Lower Set, Standard Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

12

J945928

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.50 mm Undersize Journal Diameter, 0.50 mm Oversize Thrust Width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Dust (Order Ref. 14, A77790)

1шт.

14

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

16

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

17

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Shield - Dust

1шт.

19

A77808

SERVICE KIT

Wear Sleeve, Crankshaft Front

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

21

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

22

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

Dust

1шт.

24

J934486

SERVICE KIT

Oil Seal, Crankshaft Rear

1шт.

25

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.

26

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

Not Shown

1шт.

26a

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

Not Shown

1шт.

27

A77810

SERVICE KIT

Wear Sleeve, Crankshaft Rear

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

29

NSS

NOT SOLD SEPARAT

Seal - Oil, Rear

1шт.
