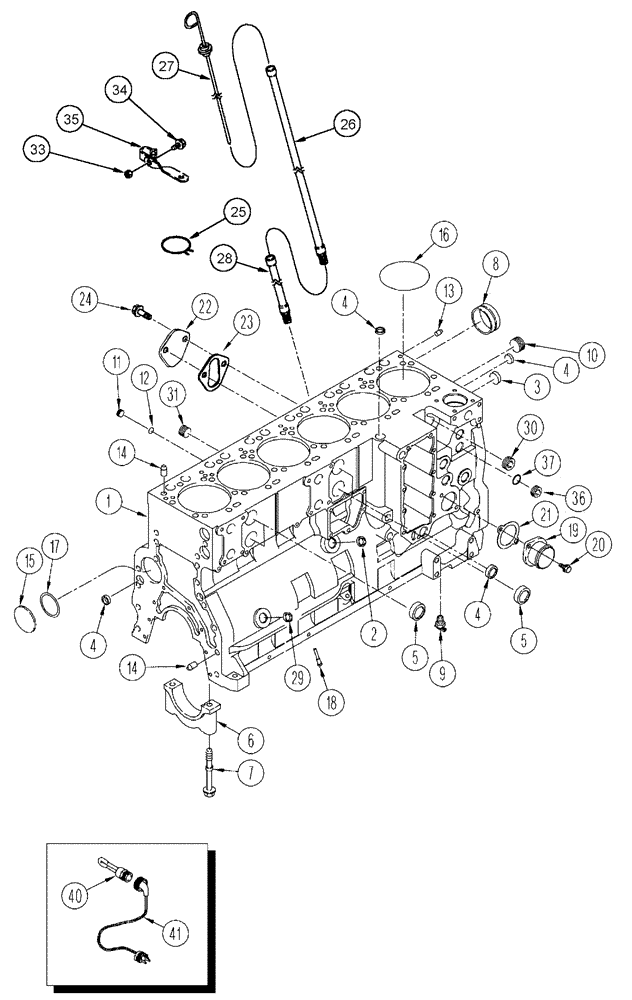

Запчасти Case IH SPX4410 (03-018) - ENGINE - CYLINDER BLOCK (01) - ENGINE

87421674

BASIC ENGINE

Assembly - Basic Service (Less Starter, Alternator,Flywheel And Housing, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold And Pipe, Oil Fill And Dipstick, Fuel Injection Pump, Injectors And Lines, Front Pulley, Belt Tensioner, Turbocharger)

1шт.

87421675

BASIC ENGINE

Assembly - Basic Service, Remanufactured (North America Only)

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

6-830-LBC

CORE-BASIC ENGINE

Return Part Number Engine 6T-830 Basic

1шт.

J991309

SHORT ENGINE

Block Assembly- Short, New (Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings)

1шт.

JR991309

REMAN-SHORT ENGINE

Remanufactured

1шт.

Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

6-830-SHBC

CORE

Return Part Number, Engine, Short Block Cyl.

1шт.

84271502

KIT

KIT, CYLINDER BLOCK CUMMINS 4089078

1шт.

J939299

BASIC BLOCK

Assembly - Stripped, Engine

1шт.

1

NSS

NOT SOLD SEPARAT

Block-Engine

1шт.

3

A77586

PLUG

Expansion, 28.9 mm od

2шт.

4

A77506

PLUG

Expansion, 21 mm od

4шт.

5

J905401

PLUG

Expansion, 35 MM OD

4шт.

6

J936058

BEARING CAP

Main Bearing

7шт.

7

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Bushing

7шт.

J800332

KIT

Block Hardware

1шт.

9

86625135

PLUG,1" - 11-1/2 NPT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

6шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

Dowel

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

Sealing, 66 MM ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

Piston Cooling

12шт.

19

J913030

FITTING

Connector - Water

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Mounting, Water Inlet

1шт.

22

J948083

COVER

1шт.

23

J939258

GASKET,1.21mm Thk

lift pump

1шт.

24

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

25

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

26

J285703

TUBE,12 mm OD x 787.5 mm L

Oil Dipstick

1шт.

27

87425037

DIPSTICK

Oil

1шт.

28

87366160

TUBE,.375" OD

Oil Dipstick, At Block

1шт.

29

J943808

PLUG

Expansion

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

31

444704

PLUG,Hex Soc, 1/2"-14

1шт.

32

J920443

PLUG

Expansion, 30 mm od

1шт.

Not Shown

1шт.

33

J915152

BRACE

Tube Support

1шт.

34

43362

NUT,M8 x 1.25, Cl 10

1шт.

35

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

36

313244A1

PLUG

hex socket, 22 mm

1шт.

37

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 mm id x 2.2 mm

1шт.

310493A1

KIT

engine block heater, 120V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element (Engine Block Heater, 120 V)

1шт.

41

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

310494A1

KIT

engine block heater, 240V, 1000W

1шт.

40

NSS

NOT SOLD SEPARAT

Element (Engine Block Heater, 240 V)

1шт.

41

J913112

WIRE HARNESS

Cable - Heater (Engine Block Heater, 240 V)

1шт.
