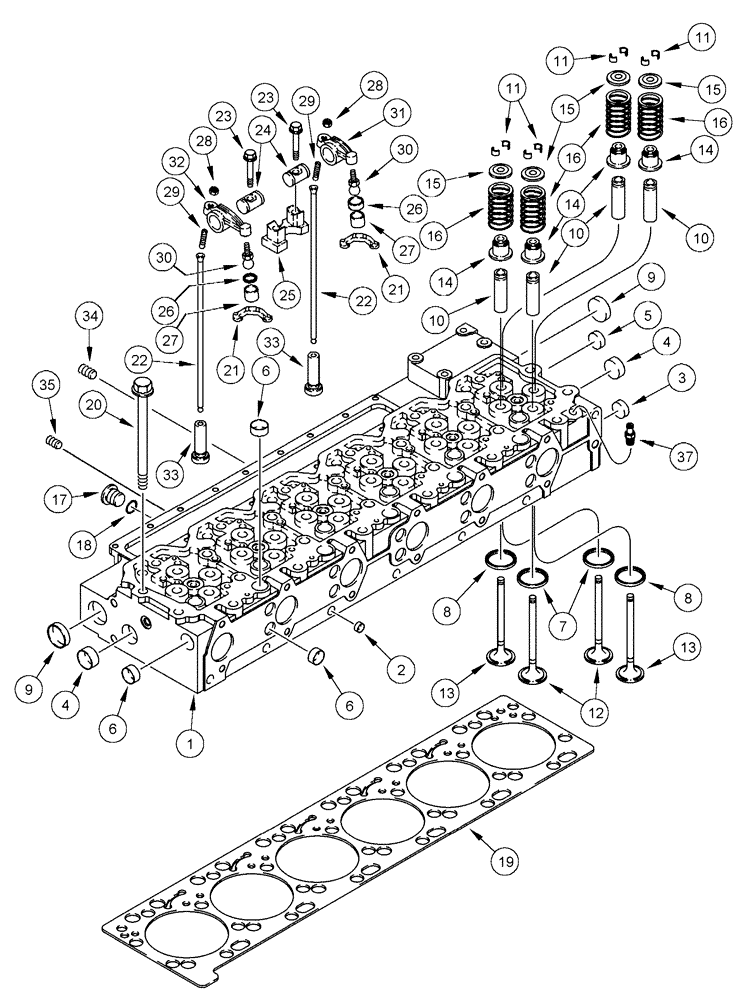

Запчасти Case IH SPX4410 (03-014) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

84181912

HEAD

Assembly - Cylinder, With Valves

1шт.

84181912R

REMAN-CYLINDER HEAD

Assembly, with Valves

1шт.

84181912C

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

84181967

CYLINDER HEAD

Assembly, Without Valves

1шт.

2

A77552

PLUG

Expansion, 29/64" Diameter

6шт.

3

J900955

PLUG

Expansion, 10 MM OD

1шт.

4

A77590

PLUG

Expansion, 28.7 mm od

2шт.

5

J907555

PLUG

Rocker Arm Shaft

1шт.

6

J920706

PLUG

Expansion, 22 MM OD

17шт.

7

J940152

INSERT

Intake Valve

12шт.

8

J940153

INSERT

Exhaust Valve

12шт.

9

41-1624

PLUG,Cup, 1 1/2", Stainless

2шт.

10

87666373

VALVE GUIDE

24шт.

11

CASJ900250

RETAINER

Keeper - Valve

48шт.

12

J942588

STD INLET VALVE

STD ENGINE INLET VALVE Intake

12шт.

13

J942589

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

14

87352235

SEAL

Valve Stem

24шт.

15

J944452

RETAINER

Valve Spring

24шт.

16

87666321

VALVE SPRING

24шт.

17

J678923

PLUG,M10 x 1

Hex Socket, 10 MM

1шт.

18

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

19

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

20

87344126

BOLT

M14 x 160

26шт.

21

J943445

CROSSBAR

Crosshead

12шт.

22

J944174

PUSH ROD

12шт.

23

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

Hex Flange Head, 10-1.5 X 68 MM, Class 10.9

12шт.

24

J941137

SHAFT

Rocker Arm

12шт.

25

J941140

SUPPORT

Rocker Arm

6шт.

J942748

ROCKER ARM

Intake

6шт.

Consists Of Refs. 26 - 31

1шт.

J942749

ROCKER ARM

Exhaust

6шт.

Consists Of Refs. 26 - 30, 32

1шт.

26

NSS

NOT SOLD SEPARAT

Clip - Retaining, Wire

1шт.

27

NSS

NOT SOLD SEPARAT

Socket - Rocker Arm

1шт.

28

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

29

87495541

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

RKR LVR ADJ

1шт.

30

NSS

NOT SOLD SEPARAT

Ball - Rocker Arm

1шт.

31

NSS

NOT SOLD SEPARAT

Arm - Rocker, Intake

1шт.

32

NSS

NOT SOLD SEPARAT

Arm - Rocker, Exhaust

1шт.

33

J945866

TAPPET

Valve

12шт.

34

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

35

444704

PLUG,Hex Soc, 1/2"-14

1шт.

36

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

37

J943670

FITTING

Orifice

1шт.
