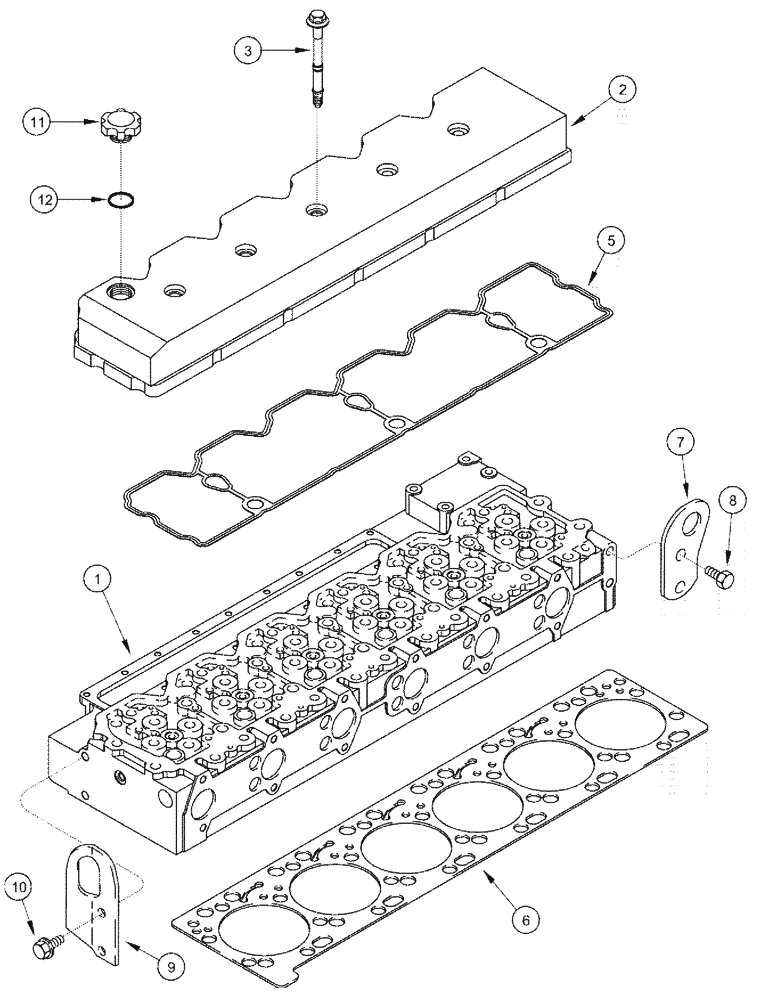

Запчасти Case IH SPX4410 (03-013) - VALVE COVER (01) - ENGINE

1

REF

INSTRUCTION

Head - Cylinder

1шт.

See Fig. 03-014

1шт.

2

87421704

VALVE COVER

1шт.

J990875

With Isolator

5шт.

3

J939284

GASKET

Valve Cover

1шт.

4

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

7

J944239

BRACKET

Lifting, Front

1шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

J944290

BRACKET

Lifting, Rear

1шт.

10

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

11

J937759

FILLER CAP

1шт.

12

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.
