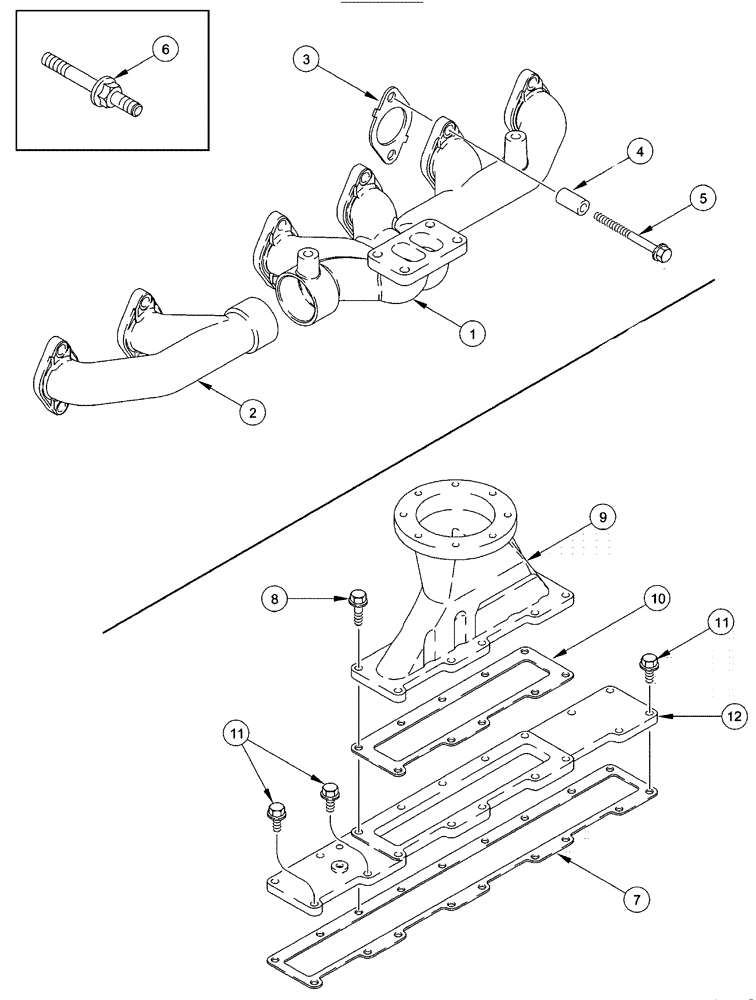

Запчасти Case IH SPX4410 (03-007) - MANIFOLDS (01) - ENGINE

1

J943841

EXHAUST MANIFOLD

1шт.

2

J937477

MANIFOLD

Exhaust

1шт.

3

J937479

MANIFOLD GASKET

Exhaust

6шт.

4

J945252

SPACER

Mounting, 35 mm, Exhaust

12шт.

5

J944593

BOLT

Hex Flange, 10 - 1.5 X 65 MM (Exhaust)

11шт.

6

87421633

BOLT

Screw - Hex Flange Head Cap, 10 - 1.5 X 65 MM, Special (Intake)

1шт.

7

J944646

MANIFOLD GASKET

Intake Cover

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

Intake

10шт.

9

J943613

AIR INTAKE

Air Intake

1шт.

10

J944647

GASKET

Connector (Intake)

1шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

Intake

3шт.

12

CASJ944342

COVER

Intake Manifold

1шт.
