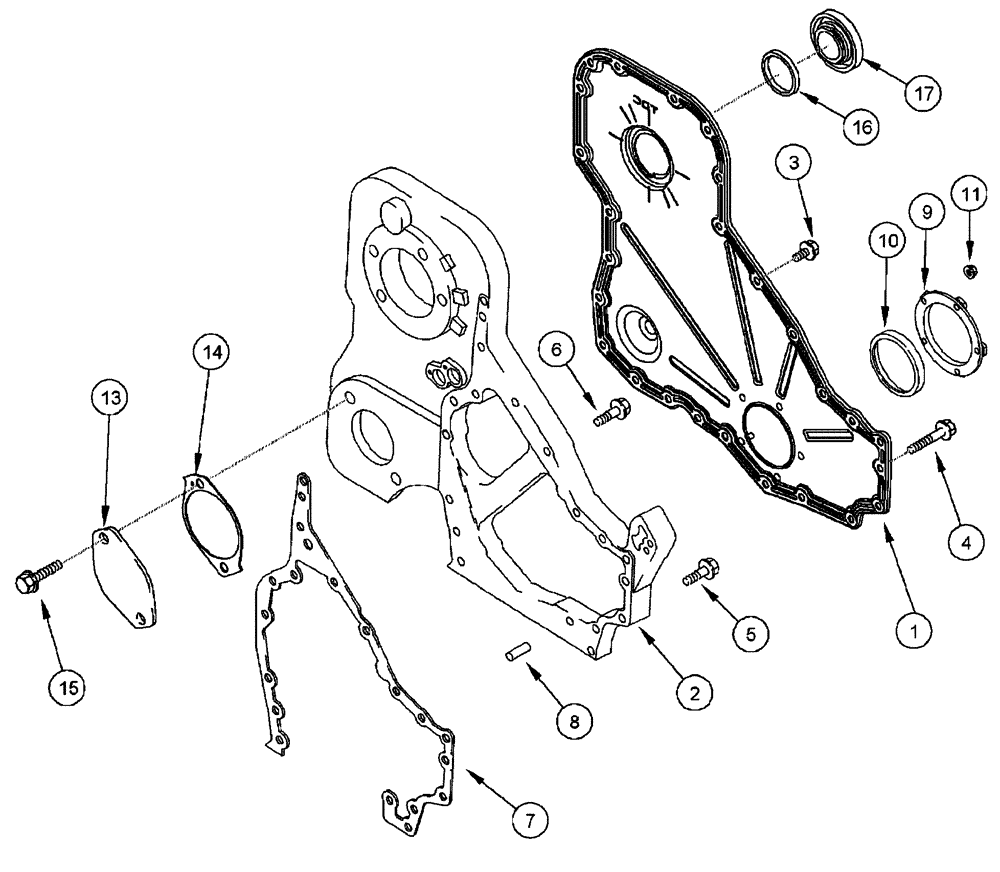

Запчасти Case IH SPX4410 (03-006) - FRONT GEAR COVER (01) - ENGINE

1

J943813

HOUSING

Cover - Gear, Front

1шт.

2

J945595

COVER

Housing - Gear

1шт.

3

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

15шт.

Cover to Housing

1шт.

4

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

11шт.

Cover To Housing To Block

1шт.

5

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

3шт.

6

J943885

BOLT

Hex Flange, 8 - 1.25 X 40 MM

3шт.

7

J944293

GASKET,1.01mm Thk

Front Gear Housing

1шт.

8

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

9

J941786

CARRIER

Front Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal - Oil, Front (Order Seal Kit A77790 Or A77808 On Fig 03-019)

1шт.

11

87493304

FLANGE NUT

FLANGE, M6 P/T NON-DIR ALL MTL 8 PL

5шт.

12

NSS

NOT SOLD SEPARAT

Sealant - (Seal Carrier To Front Cover, And Cover To Housing)

1шт.

Not Shown

1шт.

13

J940246

COVER

Plate

1шт.

14

J940245

GASKET,1.27mm Thk

hydraulic pump

1шт.

15

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover

1шт.

17

J903463

PLUG,M63 x 5

front access

1шт.
