Запчасти Case IH SPX4410 (03-005) - WATER PUMP, FAN DRIVE, AND BELT TENSIONER (01) - ENGINE

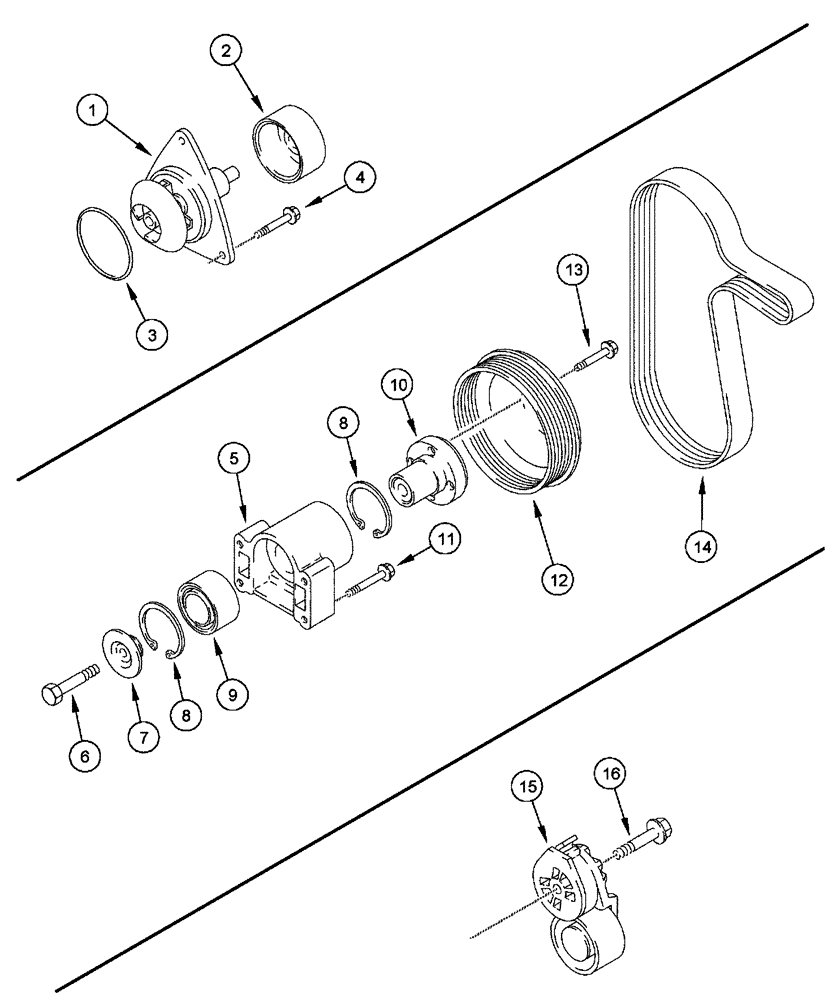

Схема запчастей Case IH SPX4410 - (03-005) - WATER PUMP, FAN DRIVE, AND BELT TENSIONER (01) - ENGINE
15
8
5
7
12
2
9
1
8
6
11
4
16
14
13
10
3

Артикул

Название

Примечание

Количество

J804927

WATER PUMP

Kit

1шт.

87308650R

REMAN-WATER PUMP

SPX4410 (6/04-8/06) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump - Water

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley - Water Pump

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

Hex, Flange, 8 - 1.25 X 28 MM

3шт.

5

J942896

SUPPORT

Assy-Fan

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

Fan Hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

Fan

1шт.

11

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

12

J926854

PULLEY

Fan

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

14

87423309

BELT,3.28 mm W x 1940.00 mm L

Ribbed

1шт.

15

87409564

BELT TENSIONER

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.
