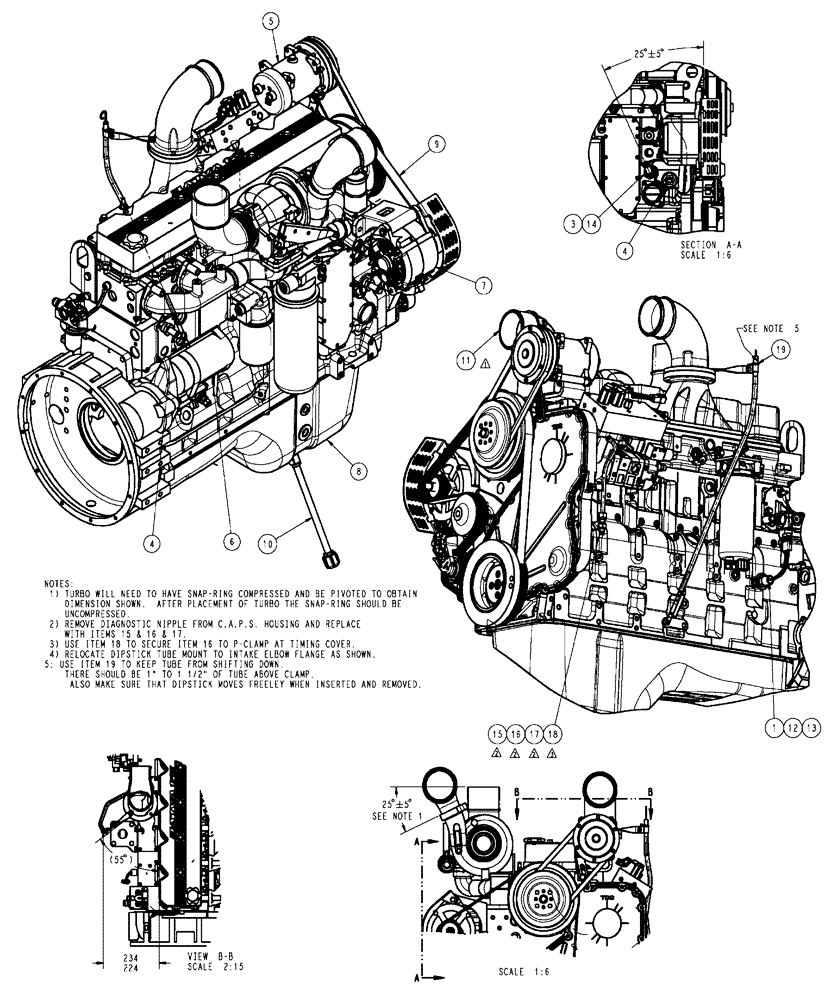

Запчасти Case IH SPX4410 (03-001) - ENGINE GROUP (01) - ENGINE

1

1964960C1

PRESSURE SWITCH

oil

1шт.

3

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

4

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

5

BN310566

PACKAGE

Air Conditioner COMP.

1шт.

See Fig. 03-054

1шт.

6

BN324040

Starter Group, Engine

1шт.

See Fig. 03-002

1шт.

7

BN324041

Alternator Group, Engine

1шт.

See Fig. 03-003

1шт.

8

87433614

ENGINE

CDC, 280HP, 2200

1шт.

8

84252737R

REMAN-BASIC ENGINE

Reman For New P/N 87433614

1шт.

8

84252737C

CORE-BASIC ENGINE

Return Part Number

1шт.

9

87423309

BELT,3.28 mm W x 1940.00 mm L

Ribbed

1шт.

10

NSS

NOT SOLD SEPARAT

Oil Drain Kit

1шт.

See Fig. 03-005

1шт.

11

BN319006

Turbo Elbow Group

1шт.

See Fig. 03-048

1шт.

12

BN319997

ADAPTER

M10 O-ring 1/8 npt

1шт.

13

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

87268447

HARNESS

Engine

1шт.

Associated Part Of 0-Ring, Oil PSI Sender , P/N 637-62081

1шт.

14

BN317988

FITTING

12MP-12FP

1шт.

15

BN307993

NIPPLE, LUBE

NIPPLE Diagnostic Nipple-6FFOR

1шт.

16

87269783

HOSE

Assembly, -4 X 10"

1шт.

17

87268947

O-RING

-4 JIC -M10 X 1.0

1шт.

18

BN309265

CABLE

Tie

1шт.

19

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

87272737

Oil Breather Extension, Start Serial: 20255

1шт.

Not Shown

1шт.

293685A1

HOSE,15.75 mm ID x 650.00 mm

Drain

1шт.

87272738

HOSE,0.50" ID

Mender

1шт.
