Запчасти Case IH SPX4410 (04-045[02]) - BATTERY GROUP W/CABLES Suspension & Frame

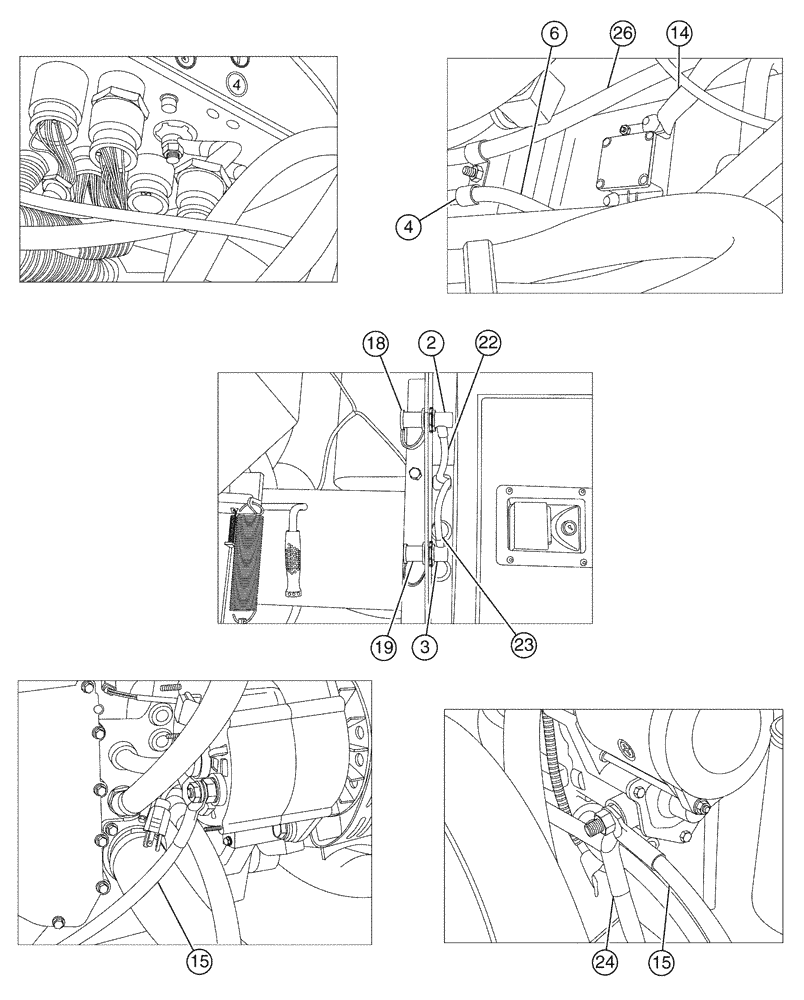

Схема запчастей Case IH SPX4410 - (04-045[02]) - BATTERY GROUP W/CABLES Suspension & Frame
19
24
14
3
15
22
6
4
15
2
18
23
26

Артикул

Название

Примечание

Количество

1

BN307097

CABLE

Battery 1/0 Black (Cab GND Stud To Frame Stud)

1шт.

2

342119A1

BOOT

Battery, Red

5шт.

3

342463A1

BOOT

Battery, Black

1шт.

4

344067A1

PIPE CLAMP

double C/MTG

5шт.

5

344068A1

CABLE

2/0 black, engine/frame (engine block to frame stud)

1шт.

7

344494A1

CABLE

battery 1/0 red 2420 mm

1шт.

8

344495A1

CABLE

battery 1/0 black 1020 mm (engine, Serial Range: block-frame)

1шт.

11

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

14

86986021

CABLE

1/0 Red, Battery/Fuse (Battery #1 To 150A Fuse)

1шт.

15

87676071

CABLE

1/0 Red, Alternator/Starter (Alternator To Starter)

1шт.

16

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

17

91734C1

WET BATTERY

12V, 950CCA, Stud

2шт.

18

1964554C1

TERMINAL

Jump, Battery, Positive, With Cap

1шт.

19

A187583

STUD

Terminal, Jump Start, Negative, With Cap

1шт.

20

BN320013

CABLE

Positive, Battery (Battery #1 To Battery #2)

1шт.

21

BN320014

CABLE

Neg, Battery (Battery #1 To Battery #2)

1шт.

22

BN320843

CABLE

Battery 1/0 Red 86 (Battery #2 To External Battery Term)

1шт.

23

BN320844

CABLE

Battery 1/0 Black 86 (Battery #2 To External Battery Term)

1шт.

24

BN322077

POS BATTERY CABLE

2/0 Red 103 (Battery #1 To Starter)

1шт.

25

BN322079

CABLE

Battery 2/0 Black 113 (Battery #1 To Engine Block)

1шт.

26

BN322080

CABLE

Battery 1/0 Black 123 (Battery #1 To Cab)

1шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

Выбрано товаров: 25
