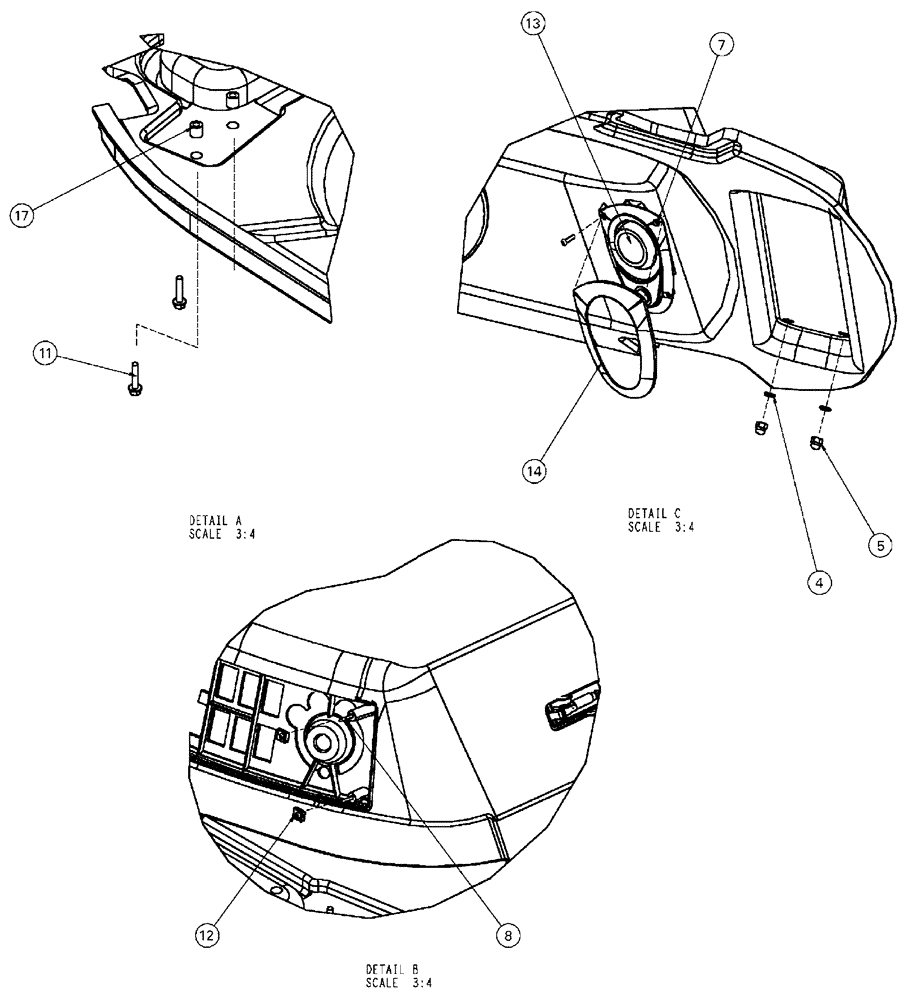

Запчасти Case IH SPX4410 (01-001[02]) - CONSOLE ASSEMBLY, OVERHEAD Cab Interior

1

431228A1

PANEL

Overhead

1шт.

2

360830A3

ROOF LINING

Headliner/A, Cab

1шт.

3

431495A1

DECAL

Overhead Light Panel

1шт.

4

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat 6.6 X 12.0 X 1.6

8шт.

5

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

6

1983391C1

LAMP,12V, 10W

Dome

3шт.

7

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

4шт.

6a

87541092

SWITCH

Cab Dome Light

1шт.

8

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

10шт.

11

555-12

BOLT,Hvy Hex, M6 x 30mm, Cl 10.9

2шт.

12

177269A1

SPRING NUT,M4.2

8шт.

13

372892A1

LAMP

map light

1шт.

14

360364A1

BEZEL

Map Light Wheat

1шт.

15

83882C91

LAMP

Assembly, Courtesy

1шт.

6

358683A1

GRILLE

Speaker

2шт.

17

02-3010T1

SPACER

Tube

2шт.
