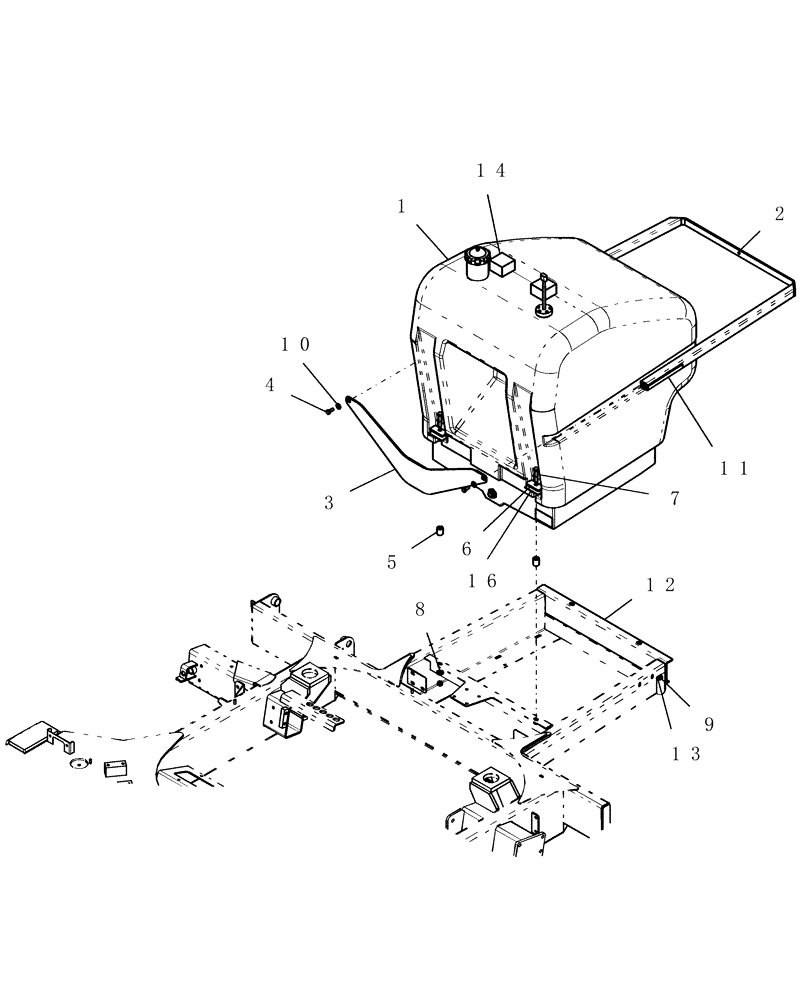

Запчасти Case IH SPX4410 (04-036) - MOUNT, FUEL TANK GROUP Suspension & Frame

1

87268550

FUEL TANK

Fittings Group

1шт.

See Fig. 04-037

1шт.

2

342022A1

SUPPORT

brace, fuel tank

1шт.

3

342024A1

SUPPORT

Brace, Fuel Tank Cross

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

5

BN67653

BUSHING

TB, RD, bushing

4шт.

6

BN67652

PLATE

Tank Hold Down

4шт.

7

9706693

BOLT,M12 x 60mm, Cl 8.8

4шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

9

100038

NUT,M12 x 1.75, Cl 8

8шт.

10

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

11

BN322644

FOAM INSULATION

2шт.

12

343142A1

MOUNTING PLATE

Fuel Tank, Horn

1шт.

13

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

14

86986299

FOAM

Hood Side Supplemental, 3XXX

2шт.

16

84237916

RUBBER MOUNTING

With Adhesive Back

4шт.
