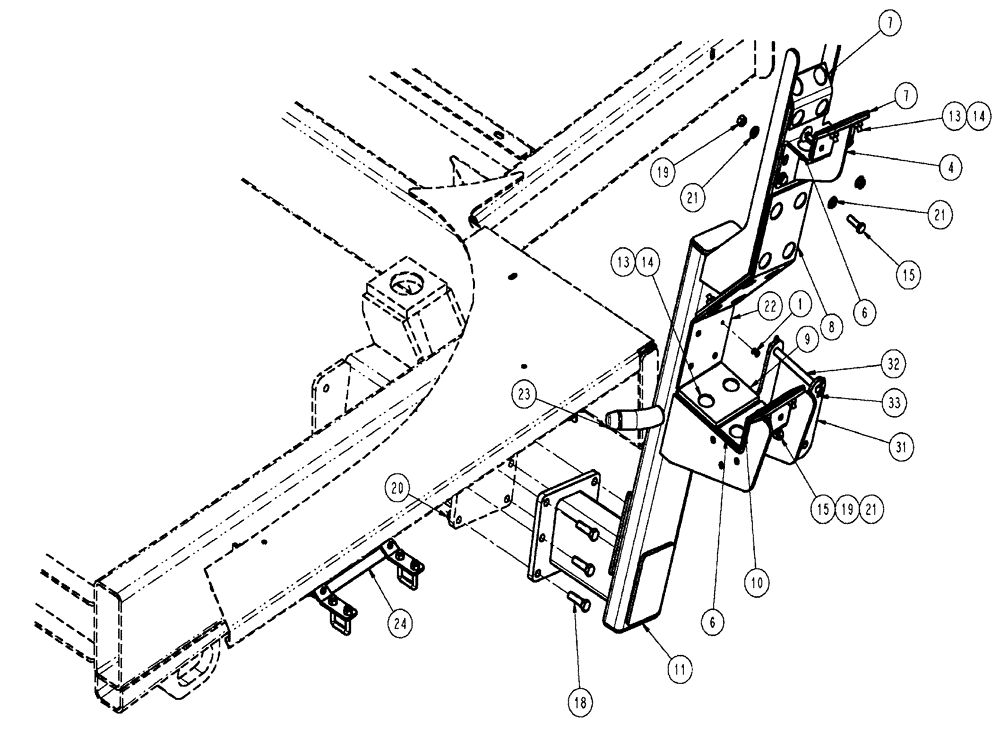

Запчасти Case IH SPX4410 (04-032) - CRADLE GROUP, RH Suspension & Frame

1

151-513

RIVET,Pop, 3/16" x .700"

4шт.

4

86986801

CRADLE

Top Boom

1шт.

6

BN319335

PAD

Boom Rest

2шт.

7

BN320594

PAD

Boom Rest, Outer

2шт.

8

BN323472

PAD

Boom Rest

1шт.

9

BN320995

PAD

Boom Rest, Bottom

1шт.

10

BN322055

PAD

Boom Rest, Bottom

1шт.

11

87266784

CRADLE

RH Boom

1шт.

13

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

26шт.

14

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

26шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

18

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

7шт.

20

100038

NUT,M12 x 1.75, Cl 8

6шт.

21

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

11шт.

22

BN323473

PAD

Boom Rest

1шт.

23

363226A1

BUMPER

door

1шт.

24

NS

NOT SERVICED

Door Stop, RH, Boom Mounted

1шт.

See Fig. 04-033

1шт.

31

342585A1

PLATE

Boom Lock

1шт.

32

342586A1

PIN,12.7mm OD x 154mm L

Boom Lock

1шт.

33

BN71006

COTTER PIN

1/8", #11

2шт.
