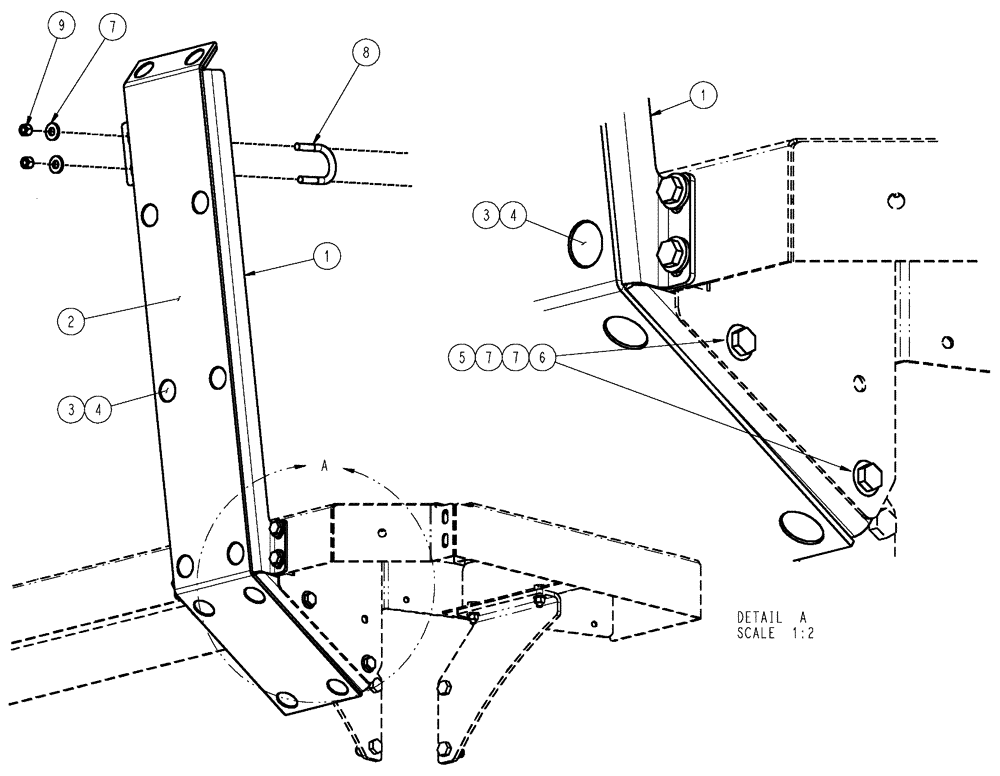

Запчасти Case IH SPX4410 (04-031) - WALKWAY PROTECTOR GROUP Suspension & Frame

1

87265733

GUIDE

Boom

1шт.

2

BN313030

GUIDE

Liner Boom

1шт.

3

BN50014

BOLT

5/16"-18 x .75, EH

12шт.

4

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

12шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

18шт.

8

87267464

U-BOLT

3/8"-16 x 1.5 ID x 2.50

1шт.

9

BN320372

NUT

3/8"-16, TL, G5

2шт.
