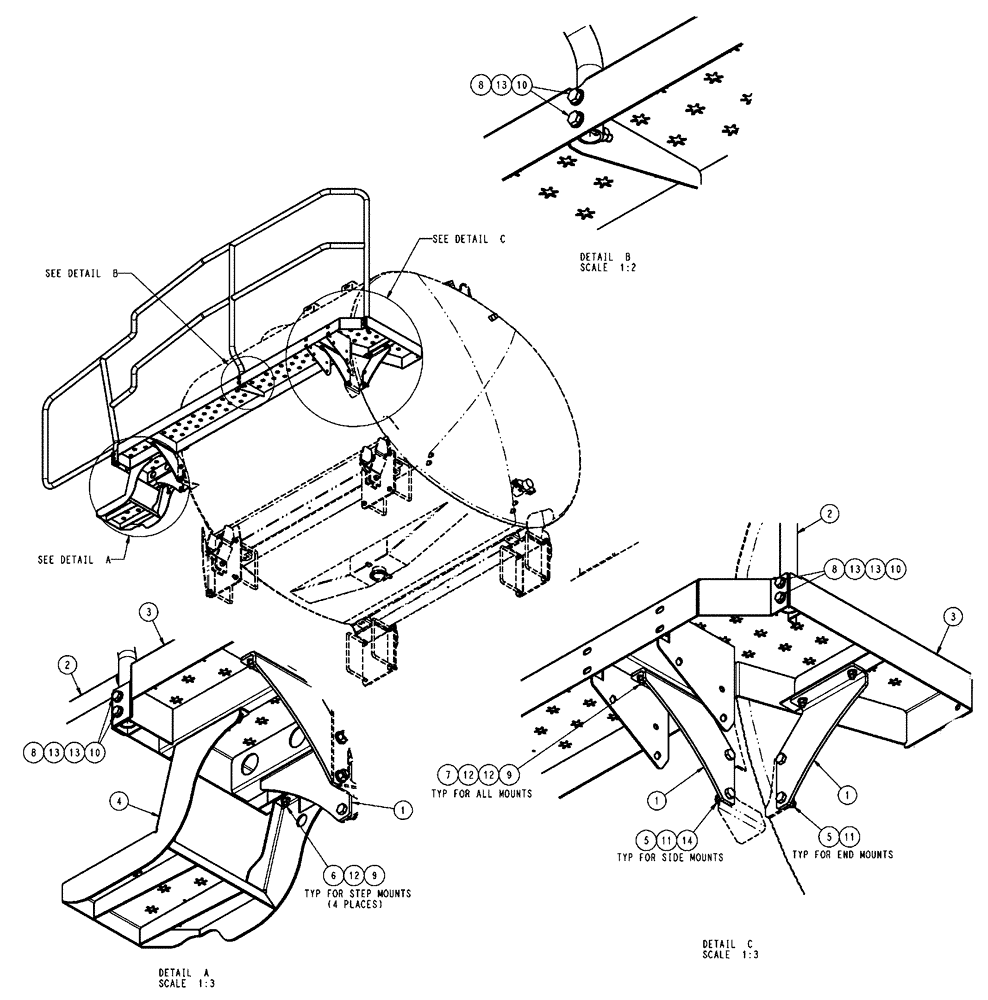

Запчасти Case IH SPX4410 (04-028) - WALKWAY & HANDRAIL GROUP, MID Suspension & Frame

1

BN324248

SUPPORT

Support, Walkway

4шт.

2

87265527

HANDRAIL

Mid

1шт.

3

87265511

FLOOR

Deckplate, LH Center

1шт.

4

87268615

STEP

1шт.

5

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

9

86528579

NUT,M8 x 1.25

12шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

11

100038

NUT,M12 x 1.75, Cl 8

8шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

13

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.
