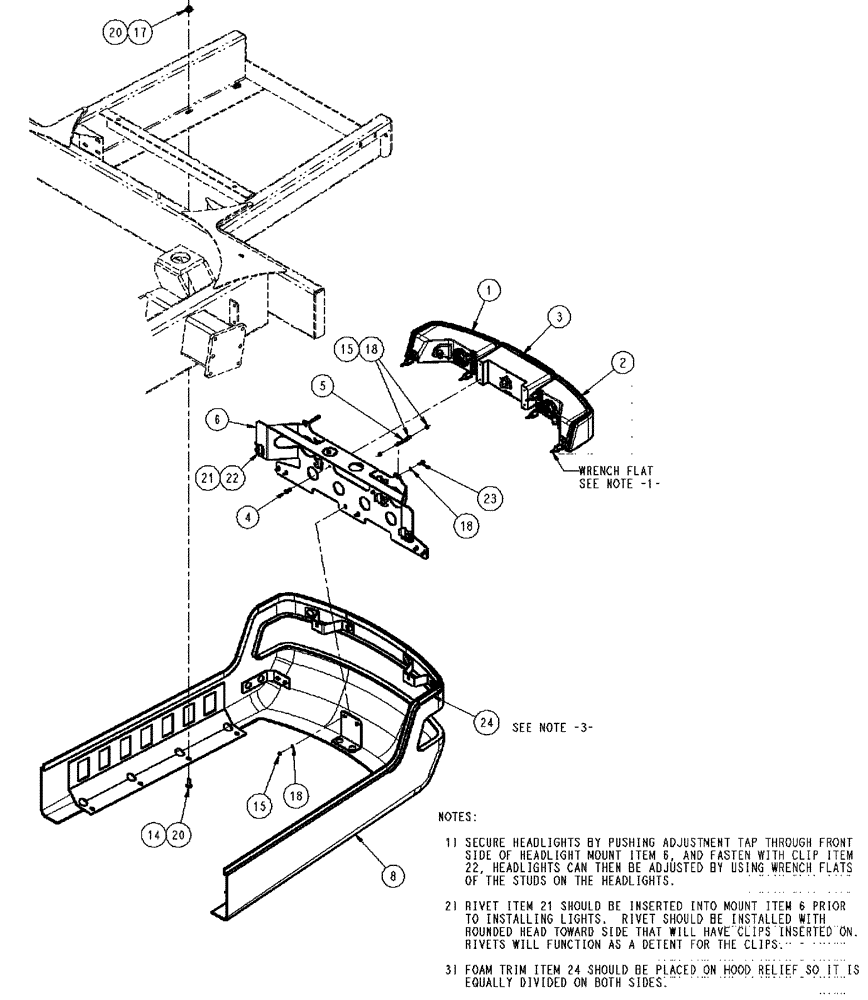

Запчасти Case IH SPX4410 (04-025) - HOOD GROUP, LOWER Suspension & Frame

1

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

left, RH dip roe

1шт.

2

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

right, RH dip roe

1шт.

3

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

center, Halogen

1шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

5

BN316956

PIN

Light Adjust

2шт.

6

344306A1

BRACKET, SUPPORTING

Headlight Mount

1шт.

8

343699A1

HOOD

Lower, Complete

1шт.

14

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

15

353308

NUT,M6 x 1.0, Cl 8

14шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

20шт.

20

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

16шт.

21

151-509

RIVET,Pop, 3/16" x .325"

6шт.

22

259713A1

CLIP

Light Mounting

6шт.

23

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

24

342538A1

FOAM

Fuel Tank Hood

1шт.
