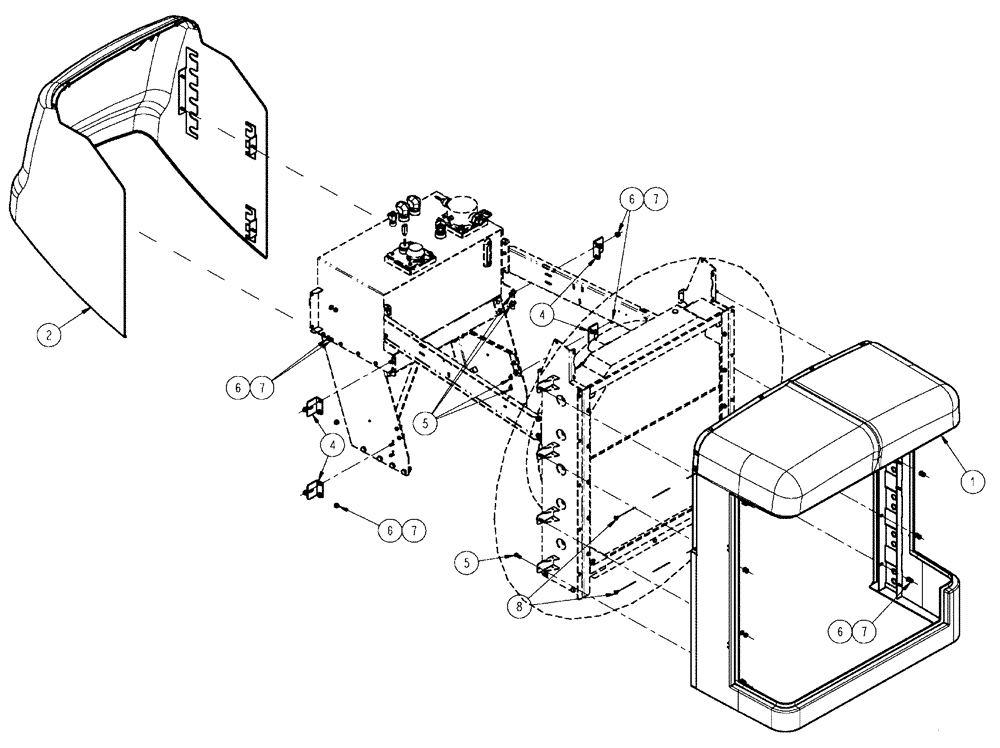

Запчасти Case IH SPX4410 (04-021) - HOOD MOUNT GROUP, ENGINE, FRONT & REAR Suspension & Frame

1

87270148

ENGINE HOOD

Front, Complete, Start Serial: 6285

1шт.

1

87266789

ENGINE HOOD

Front, Complete

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

87270139

ENGINE HOOD

Rear, Complete, Start Serial: 6285

1шт.

2

BN319573

ENGINE HOOD

Rear, Complete

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

87270138

MOUNTING PLATE

Hood, Start Serial: 6285

4шт.

4

BN322639

Mount, Hood

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN32494

Mount, Hood

4шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

16шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

7

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

24шт.

8

BN308098

SEAL

Belting - Hood

4шт.

9

BN52346

POP RIVET

1/8" x .5 SS

8шт.

Not Shown

1шт.
