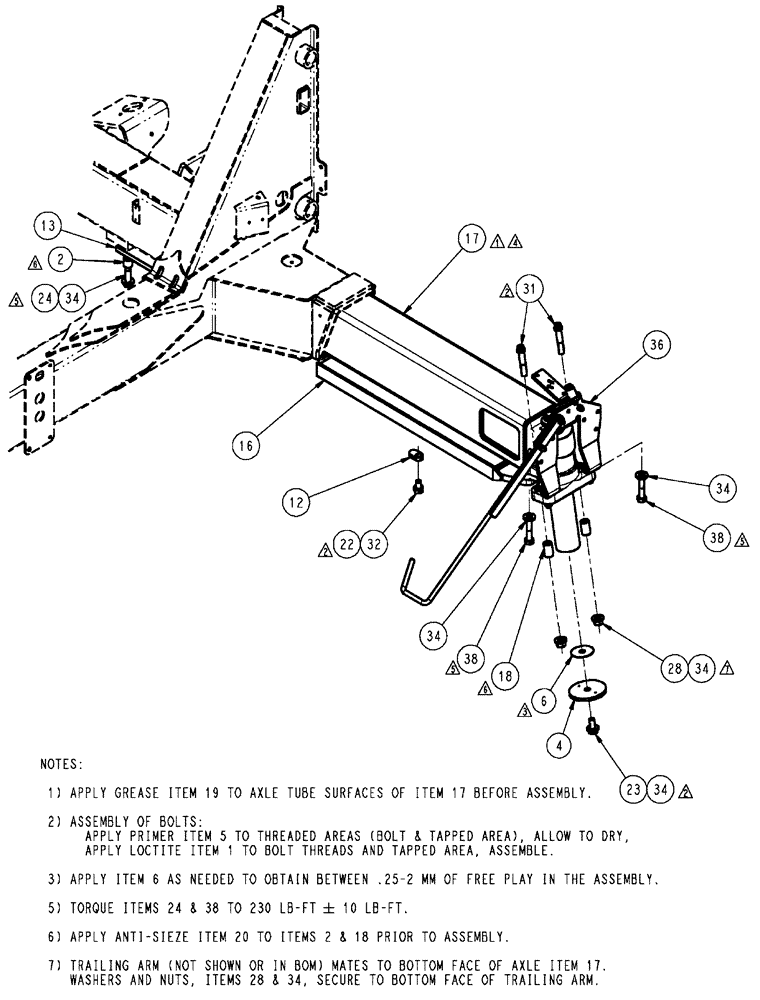

Запчасти Case IH SPX4410 (04-011) - AXLE GROUP, NON STEER, LR Suspension & Frame

2

BN301998

DOWEL

Hollow

1шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

6

BN312604

SPACER

Shim - Axle

1шт.

12

BN320759

STOP

tab, axle adjust

1шт.

13

87268923

BAR

Axle Slide

1шт.

16

87268928

SLIDE

Axle adjuster, LR

1шт.

17

87721678

AXLE

Rear

1шт.

18

342939A1

SLEEVE

dowel, hollow

2шт.

22

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

23

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

24

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

28

264031

NUT,M20 x 2.5, Cl 10

2шт.

31

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

32

892-11020

LOCK WASHER,M20

1шт.

34

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

36

NS

NOT SERVICED

Hose, Non Pivot Group, LR

1шт.

See Fig. 04-007

1шт.

38

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.
