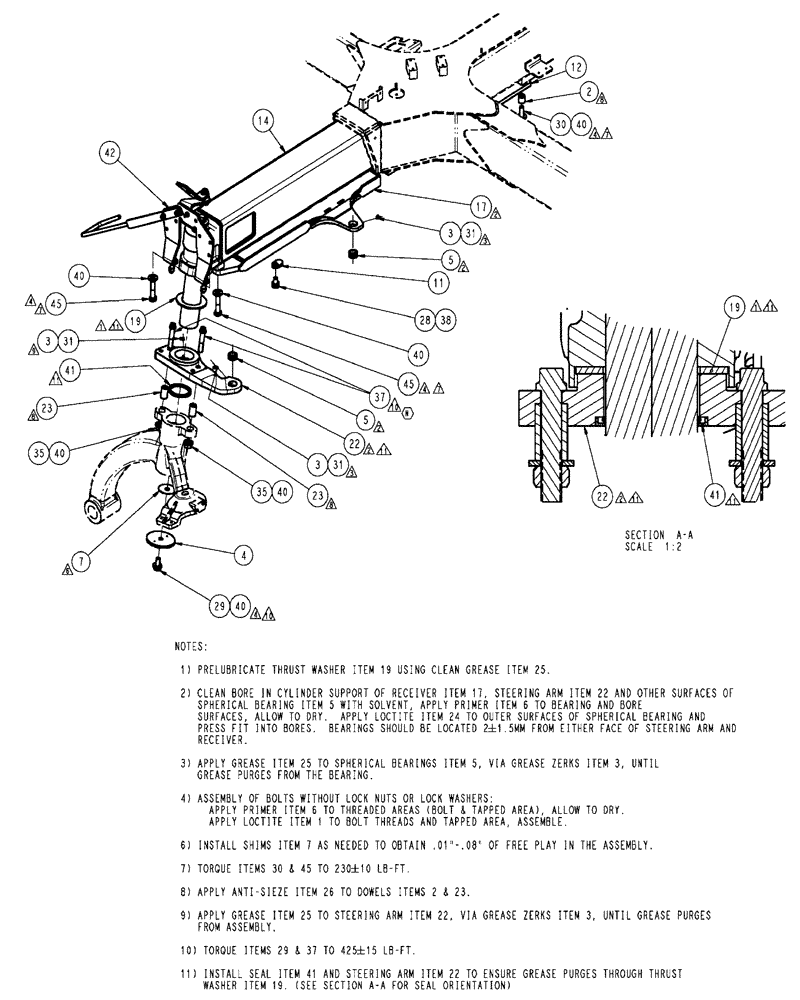

Запчасти Case IH SPX4410 (04-010) - AXLE GROUP, STEER, LF Suspension & Frame

2

BN301998

DOWEL

Hollow

1шт.

3

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

5

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

2шт.

7

BN312604

SPACER

Shim - Axle

1шт.

8

87266770

DOWEL

Hollow

1шт.

9

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

1шт.

11

BN320759

STOP

tab, axle adjust

1шт.

12

87268923

BAR

Axle Slide

1шт.

14

87721676

AXLE

Front

1шт.

17

87265739

SLIDE

axle adjustment, LF

1шт.

19

86986933

THRUST WASHER,95mm ID x 149mm OD x 6.26mm Thk

1шт.

22

86986934

STEERING ARM

Steering, LH

1шт.

23

342939A1

SLEEVE

dowel, hollow

2шт.

28

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

29

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

30

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

31

BN69951

CAP

Grease

3шт.

35

264031

NUT,M20 x 2.5, Cl 10

2шт.

37

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

38

892-11020

LOCK WASHER,M20

1шт.

40

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

6шт.

41

343883A1

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

42

NS

NOT SERVICED

Hose Pivot Group, LF

1шт.

See Fig. 04-005

1шт.

45

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.
