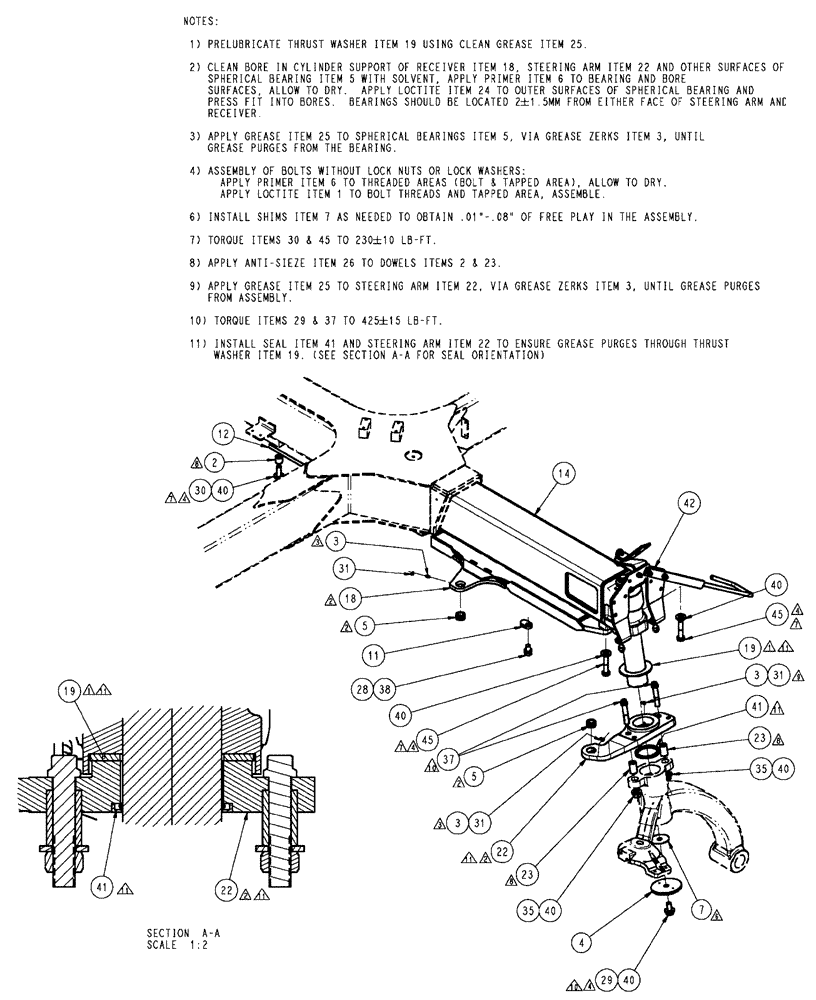

Запчасти Case IH SPX4410 (04-009) - AXLE GROUP, STEER, RF Suspension & Frame

1

BN1243001

LOCTITE

243-31 Removable

1шт.

2

BN301998

DOWEL

Hollow

1шт.

3

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

5

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

2шт.

6

BN307971

SEALANT

thread

1шт.

7

BN312604

SPACER

Shim - Axle

1шт.

11

BN320759

STOP

tab, axle adjust

1шт.

12

87268923

BAR

Axle Slide

1шт.

14

87721676

AXLE

Front

1шт.

18

87265738

SLIDE

axle adjustment, RF

1шт.

19

86986933

THRUST WASHER,95mm ID x 149mm OD x 6.26mm Thk

1шт.

22

86986935

STEERING ARM

Steering, RH

1шт.

23

342939A1

SLEEVE

dowel, hollow

2шт.

24

ZPX27136

SEALANT, THREAD

Adhesive, 271

1шт.

25

BN55015

NIPPLE, LUBE

NIPPLE Grease-Lithium 12-Grade#2, 0.06

1шт.

26

BN55077

ANTISEIZE

Compound, 0.05

1шт.

28

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

29

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

30

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

31

BN69951

CAP

Grease

3шт.

35

264031

NUT,M20 x 2.5, Cl 10

2шт.

37

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

38

892-11020

LOCK WASHER,M20

1шт.

40

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

6шт.

41

343883A1

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

42

NS

NOT SERVICED

Hose Pivot Group, RF

1шт.

See Fig. 04-006

1шт.

45

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.
