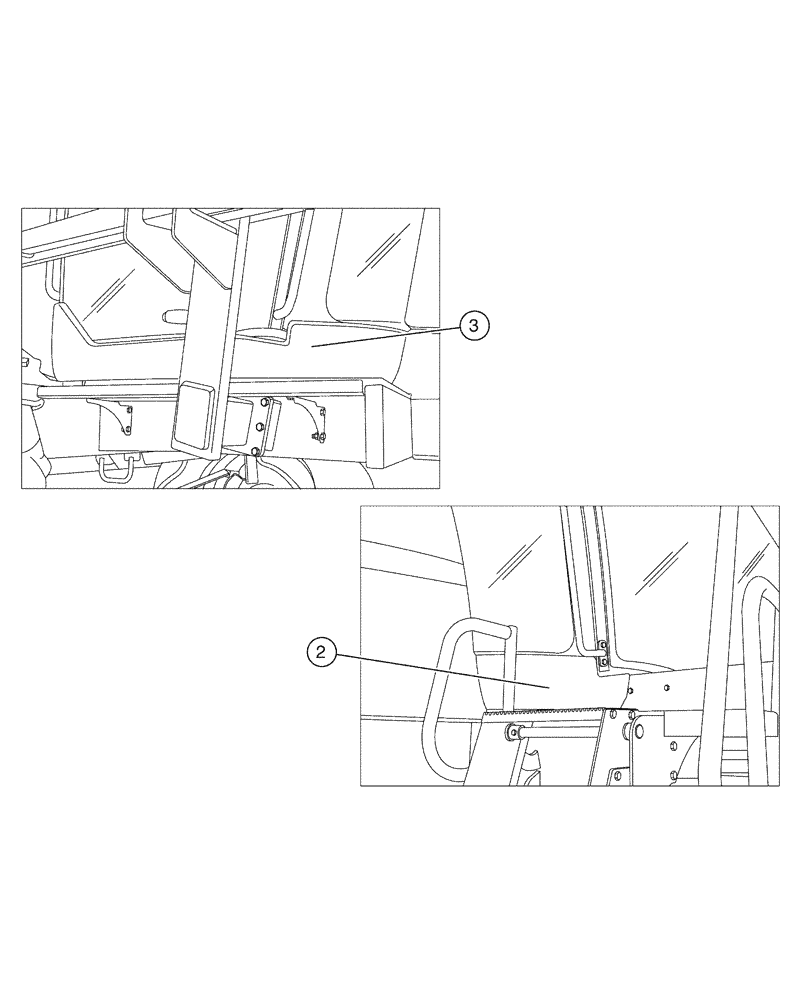

Запчасти Case IH SPX4410 (02-011) - CAB SKIRT GROUP Cab Exterior

1

BN323562

SKIRT

Rear

1шт.

Not Shown

1шт.

2

BN323563

SKIRT

LH

1шт.

3

87357991

SKIRT COVER

cab, RH

1шт.

4

341574A3

BRACKET

Skirt

1шт.

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

2шт.

404287A1

INSERT,M6

threaded knurled open

4шт.

404882A1

SPRING NUT,M6

nut, M6 spring, wide range

4шт.

86528579

NUT,M8 x 1.25

1шт.

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

8шт.

840-2820

SCREW,Pan, M8 x 20mm, Cl 4.8

4шт.

87016567

SPRING NUT,Tinn, U, #10

2шт.
